SmallHD 703 Bolt 7" Wireless Director's Monitor Bundle (Gold Mount)
SmallHD 703 Bolt 7" Wireless Director's Monitor Bundle

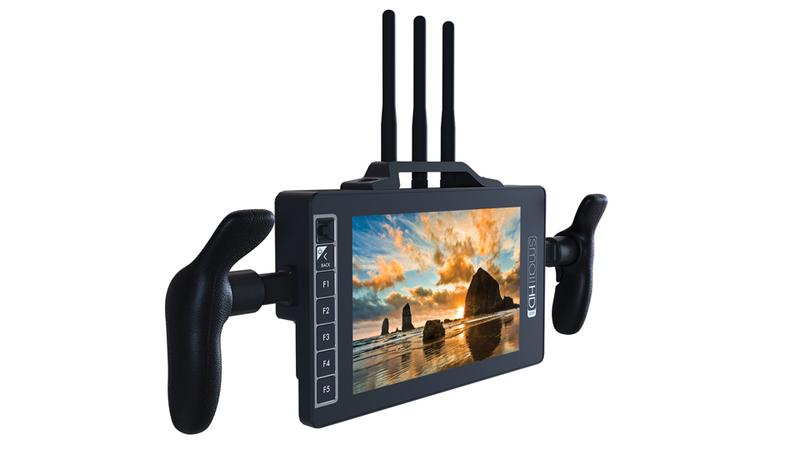

Teradek SmallHD 703 Bolt 7" Wireless Director's Monitor Bundle (Gold Mount)

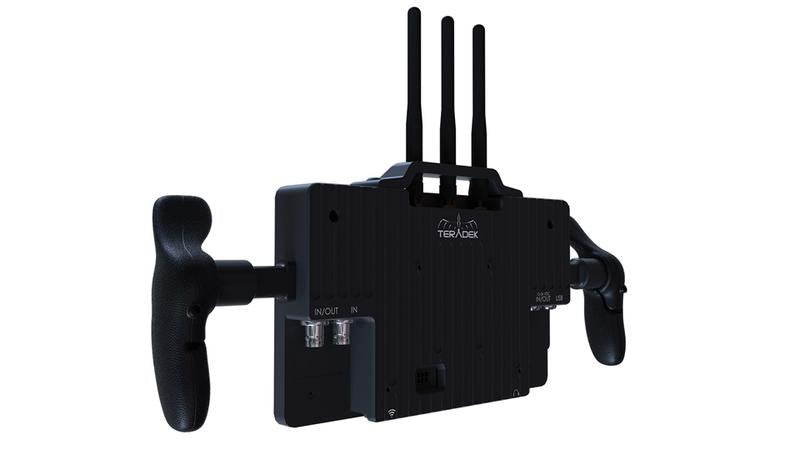

Teradek SmallHD 703 Bolt 7" Wireless Director's Monitor Bundle (Gold Mount) Rear View
Teradek SmallHD 703 Bolt 7" Wireless Director's Monitor Bundle (Gold Mount) Side View

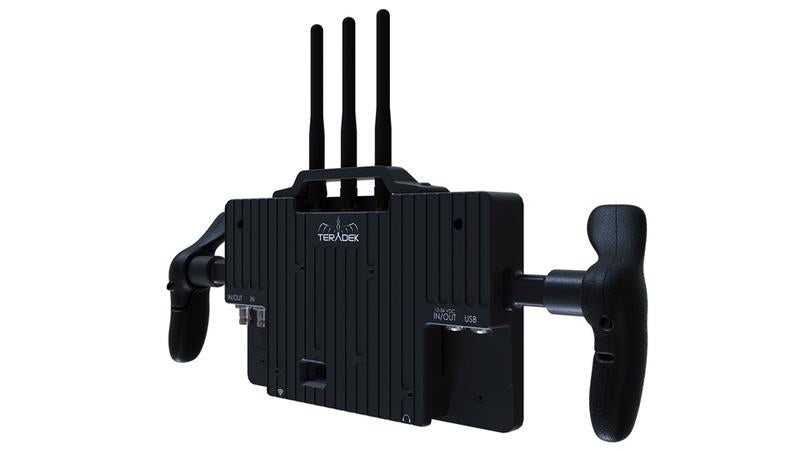

Teradek SmallHD 703 Bolt 7" Wireless Director's Monitor Bundle (Gold Mount) Rear Right Side In/Out USB
SmallHD 703 Bolt 7" Wireless Director's Monitor Bundle

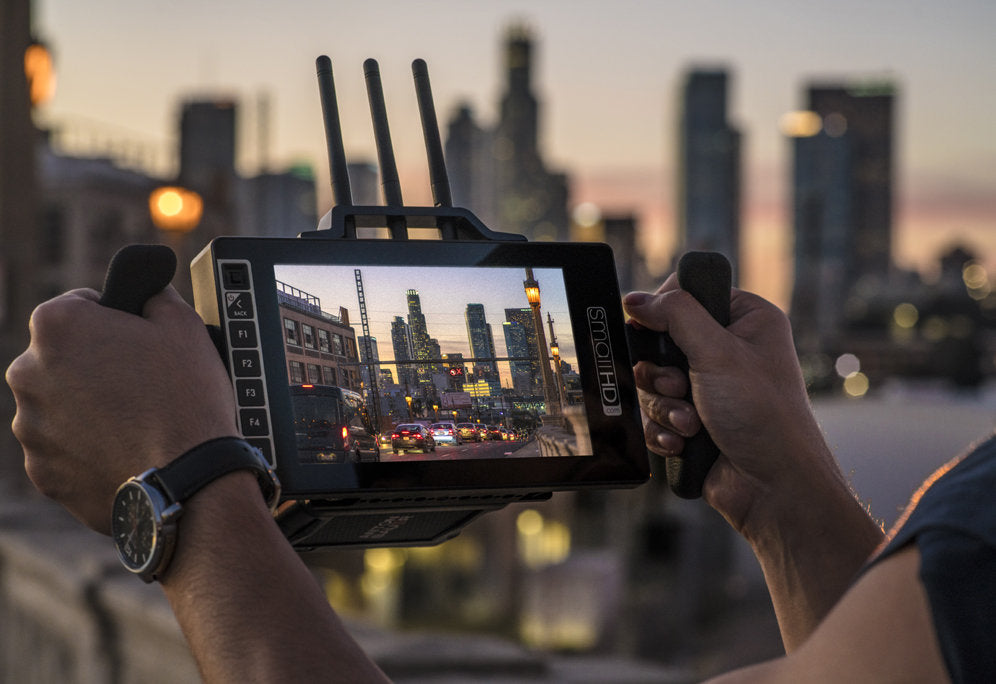

Teradek SmallHD 703 Bolt 7" Wireless Director's Monitor Bundle (Gold Mount) In Use

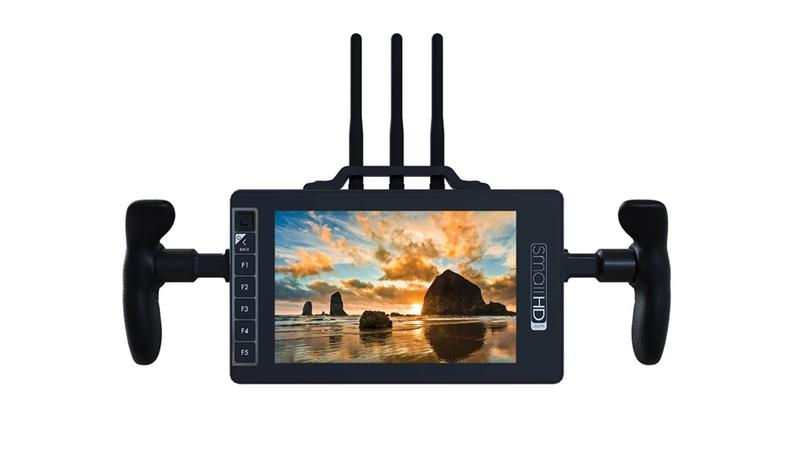

Teradek SmallHD 703 Bolt 7" Wireless Director's Monitor Bundle (Gold Mount) Pkg Rental

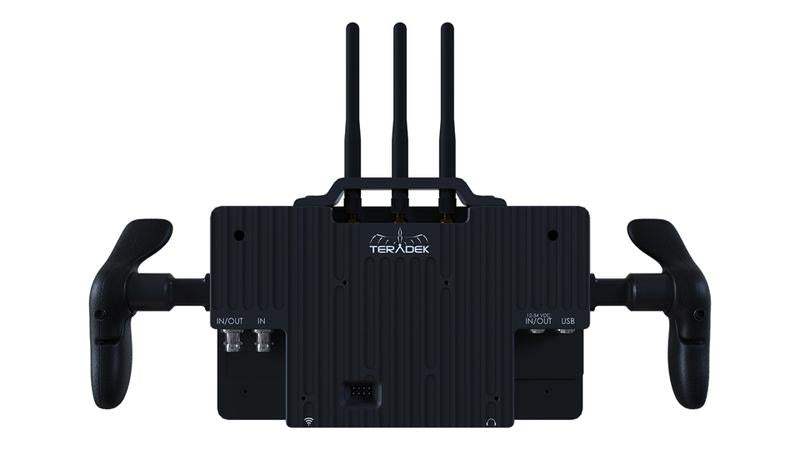

Teradek SmallHD 703 Bolt 7" Wireless Director's Monitor Bundle (Gold Mount) Rear view

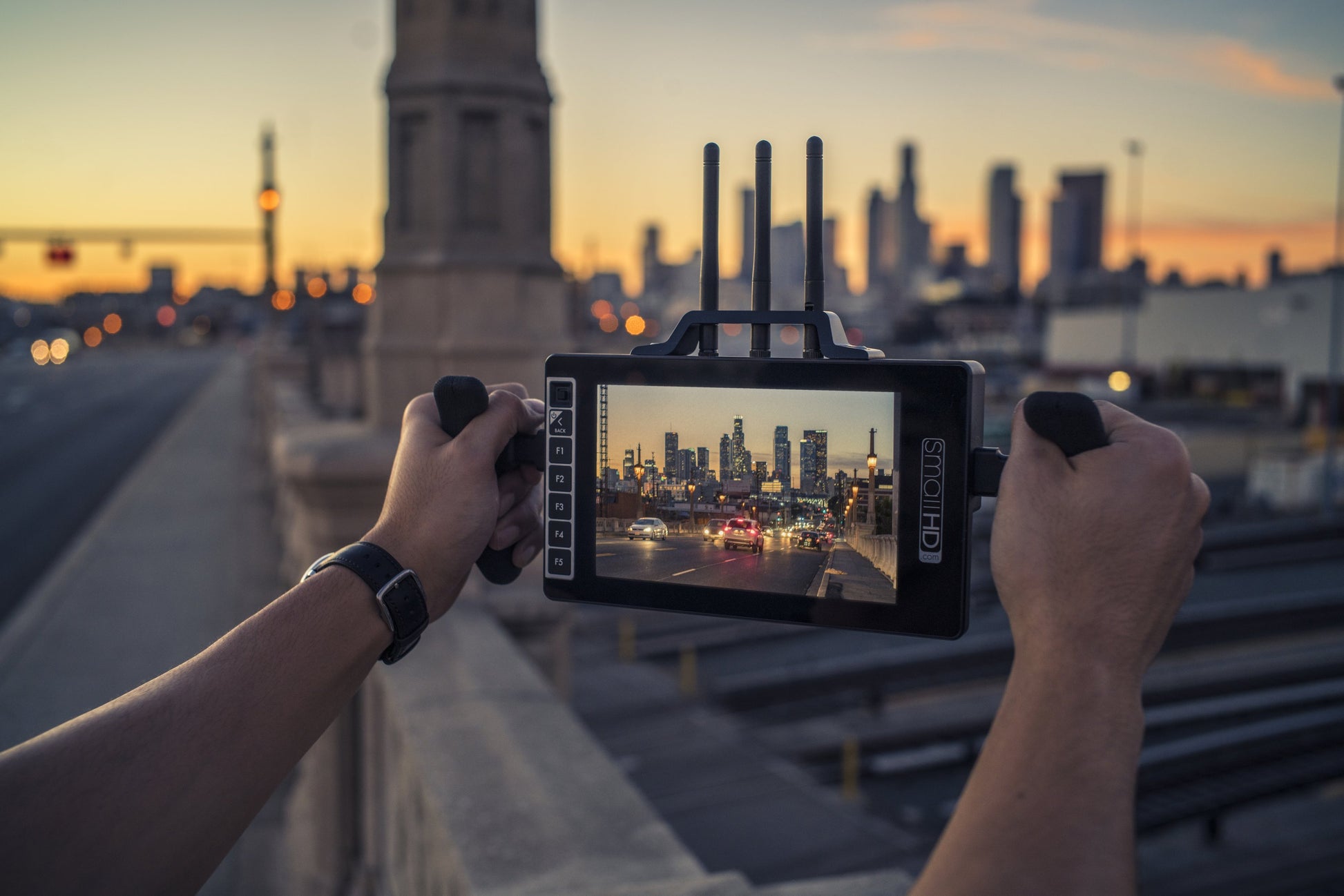

SmallHD 703 Bolt 7" Wireless Director's Monitor Bundle

Regular price
$6,250.00
Sale price
$6,250.00
Shipping calculated at checkout.

SMALLHD 703 Bolt 7-in Monitor/Wireless Receiver



RENTALS@OLDSCHOOLCAMERAS.COM (LONG-TERM DISCOUNT

  • 300/day,      630/wk,      1,5k/monthly


Shipped Worldwide!!
🌎 760-309-2302 ☎️

Teradek 3000 TX Transmitter $300/ Day

Teradek 1000 TX Transmitter $250/ Day

Teradek 500 TX Transmitter $150/ Day



ADD + CAMERA PACKAGE! 30% DISCOUNT! ARRI ALEXA 35, ALEXA MINI, MINI LF, SONY VENICE 2, RED V-RAPTOR 8K, HELIUM, KOMODO, ARRI 416, ARRI 235, ARRI 435 XTREME, ARRI LT, ARRI ST, ÉCLAIR NPR, ARRI SR3, ARRI SR2 HS, BOLEX, DIGITAL BOLEX, VINTAGE BROADCAST, ALL FORMATS

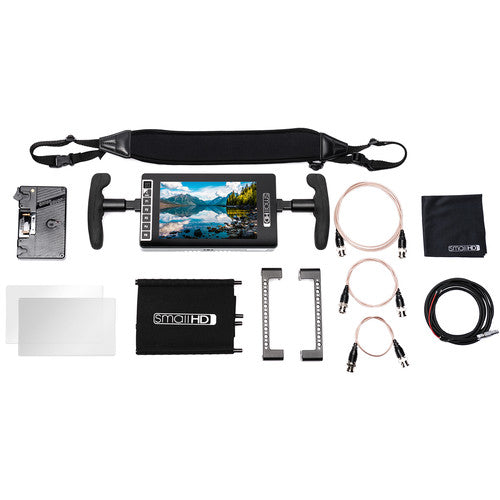

INCLUDED KIT ITEMS:

  • SmallHD 703 Bolt Wireless Handheld Directors Monitor
  • SmallHD Clear plastic 7” screen cover
  • SmallHD Left Side Handgrip
  • SmallHD Right Side Handgrip
  • SmallHD Anton Bauer Back Plate
  • SmallHD Padded Neck-strap w/ L+R Clips
  • Anton Bauer Battery
  • Anton Bauer Quad Charger
  • Pelican Case Monitor
  • Pelican Case Batts/Chrg



KEY FEATURES:

  • Key Features
  • 7" 1920 x 1080 Display
  • Integrated Teradek Sidekick Wireless Rx
  • SDI Local Inputs
  • Bright 3000 cd/m² LCD Panel
  • Power via 2-Pin LEMO
  • PageBuilder OS
  • Gold Mount Battery Plate
  • Includes Side Handle Set and Neck Strap



SmallHD 703 Bolt Specs



Display

Panel Type

IPS-Type LCD

Display Size

7.0" / 17.8 cm

Screen Resolution

1920 x 1080

Aspect Ratio

16:9

Viewing Angle

Horizontal: 160°

Maximum Brightness

3000 cd/m2

Contrast Ratio

1150:1

Bit Depth / Color Support

8-Bit (16.7 Million Colors)

Pixels Per Inch (ppi)

323 ppi

Color Gamut

70% NTSC

Image Controls

Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform

I/O

Video

1 x BNC (3G-SDI) Input/Output
1 x HDMI Type A Output
1 x BNC (3G-SDI) Input

Embedded Audio

SDI
Wireless

Audio I/O

1 x 1/8" / 3.5 mm Headphone Output

Built-In Speaker

None

Power I/O

1 x LEMO 2-Pin Input

Other I/O

1 x Wireless Receiver

Card Slot

1 x SD

Format Support

Video Format

SDI (10-Bit 4:2:2 YCC)
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
576i
480i
Wireless (10-Bit 4:2:2)
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60
720p: 50/59.94/60
576i
480i

Power

DC Input Power

6 to 34 VDC

Battery Type

1 x Gold Mount

Power Consumption

16 W

Mounting

Mounting

4 x 1/4"-20 Female

Environmental

Certifications

CE, FCC, RoHS, as per Manufacturer

Operating Temperature

0 to 100°F / -17.8 to 37.8°C

Storage Temperature

-4 to 120°F / -20 to 48.9°C

General

Weight

2.8 lb / 1.25 kg, Including

Packaging Info

Package Weight

4.8 lb

Box Dimensions (LxWxH)

9.5 x 7.1 x 4.7"





Monitor your camera's feed completely free of wires with the SmallHD 703 Bolt 7" Wireless Director's Monitor Bundle. This bundle adds a Gold mount plate, side handles, and a neck strap to complement the monitor itself. Since the monitor can now operate on battery power from a separately available battery, with a compatible wireless connection, the 703 Bolt can be taken around the set fully untethered.



Borrowing the wireless technology from Teradek, the 703 Bolt can receive uncompressed HD wireless signals from Bolt 500, 1000, or 3000 transmitters up to 300' away with no perceptible latency. With this feature, anyone can walk around the set while monitoring a camera feed, perfect for directors and camera assistants. Furthermore, despite the presence of a wireless receiver, the 703 Bolt maintains a slim profile similar to on-camera monitors.



A unibody aluminum exterior keeps the monitor durable yet lightweight, while also acting as a heatsink for the internal electronics. The LCD panel itself is protected by a layer of optically-bonded Gorilla Glass, notable for its transparency and toughness. The optical bonding process ensures that blacks are not washed out and reduces the harshness of reflections.



On the rear of the display is the SDI I/O. Having dual SDI ports allows for A/B viewing of two different SDI signals, or the secondary port can be assigned as an output for sending an SDI signal downstream to another monitor, switcher, or wireless accessory. All the functionality of the monitor is available via the PageBuilder OS, which provides advanced functionality with a simple and efficient graphical user interface.



PageBuilder OS

PageBuilder OS is an intuitive graphical user interface (GUI) that puts all the advanced functionality of the 703 Bolt at your fingertips. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, multiview, LUTs, and focusing aids on different "pages". These pages can be easily flipped through using the joystick. The buttons on the front panel can also toggle monitoring tools on and off for each page. ColorFlow 3D LUT Processing To keep your images consistent from production through to post-production, ColorFlow allows you to import 3D LUTs and display the treated image side-by-side with the untreated image to correctly gauge exposure while visualizing what is being recorded by the camera. Separate LUT-treated images can be sent downstream over SDI so you can have the 703 Bolt display a log image or LUT-treated image, while the director or client monitors connected to the outputs can receive images treated with a different LUT. An image capture function saves a still frame from the incoming video stream onto an SD card, and records the applied 3D LUT for post-production reference. On-Set Problem Solving PageBuilder OS has a dedicated "Output Preview" page which allows you to apply LUTs and other image adjustments specific to the output signal from the monitor. Whether you have your camera connected to the wireless or SDI inputs on the 703 Bolt, you are not limited by that connection; the 703 Bolt cross-converts to ensure compatibility with downstream hardware.



HD Scopes Fill the screen with up to three simultaneous scopes, including waveform, vectorscope, and histogram, while still being able to observe the camera feed.



Exposure Tools Exposure Assist supports both ARRI and Spectrum-based false color, with built-in IRE guides for reference. Utilize 2x Zebra to warn you when reaching a brightness level of your choosing. This is great for matching exposure across shots and cameras.



Customizable Focus Assist and Peaking Tools As recording resolutions increase, so does the importance of focusing precision. With Focus Assist, you can highlight the areas that are in focus with a bright color. These highlights are easily visible on the fly for quick focus confirmation. Focus Peaking increases the sharpness of the image for a subtler focus confirmation without the need for bright outlines. The color and intensity of these tools are adjustable to fit your preference.



Versatile Frame Guides Select standard markers and safety areas can be overlaid on the display as lines or matte overlays, with custom opacity level and colors. Default aspect ratios include 4:3, 1.85, 2.39:1, 16:9, and Custom (user-selectable).
