RED WOVEN HELIUM 8K EPIC Pkg

RED WOVEN HELIUM 8K EPIC Pkg

RED Digital

$8,400.00 USD
$10,000.00 USD $8,400.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

The technical specifications for the RED EPIC-W 8K S35 (featuring the HELIUM 35.4 Megapixel CMOS sensor in a woven carbon fiber finish / DSMC2 Brain) are detailed below:

Chat w/ us now to build a complete package + Add: Mags, Batteries, Mattebox, Tripod, Follow Focus, Filters

Sensor & Dynamic Range

Feature Specification
Sensor Type HELIUM 35.4 Megapixel CMOS
Effective Pixels $8192 \times 4320$
Sensor Size $29.90\text{ mm} \times 15.77\text{ mm}$ (Diagonal: $33.80\text{ mm}$ / Super 35)
Pixel Pitch 3.65 microns
Dynamic Range 16.5+ stops
Signal-to-Noise Ratio 80 dB

Frame Rates & Recording Formats

  • Max Frame Rates:

    • 8K Full Format ($8192 \times 4320$): Up to 30 fps

    • 7K Full Format ($7168 \times 3780$): Up to 30 fps (40 fps at 2.4:1)

    • 6K Full Format ($6144 \times 3240$): Up to 75 fps (100 fps at 2.4:1)

    • 5K Full Format ($5120 \times 2700$): Up to 96 fps (120 fps at 2.4:1)

    • 4K Full Format ($4096 \times 2160$): Up to 120 fps (150 fps at 2.4:1)

    • 2K Full Format ($2048 \times 1080$): Up to 240 fps (300 fps at 2.4:1)

  • Recording Codecs:

    • REDCODE RAW: Up to 8K at 30 fps (6:1 REDCODE @ 8K 24 fps)

    • Apple ProRes: ProRes 422 HQ / 422 / 422 LT up to 4K at 29.97 fps; ProRes 4444 XQ / 4444 up to 2K at 120 fps

    • Avid DNx: DNxHR HQX / HQ / SQ / LB up to 4K at 29.97 fps; DNxHD up to 2K/1080p at 120 fps

  • Max Data Rate: Up to 275 MB/s (using RED MINI-MAG 480GB / 960GB)

Physical & Construction Specs

  • Weight: 3.35 lbs (1.52 kg) (BRAIN with integrated media bay)

  • Construction: Woven carbon fiber exterior pattern with aluminum and magnesium alloy internal structure

  • Mounting & Accessories: DSMC2 interchangeable lens mounts (PL, EF, Leica M, Nikon) and interchangeable OLPFs (Optical Low Pass Filters)

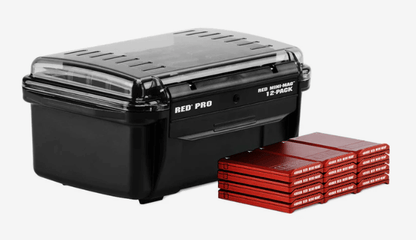

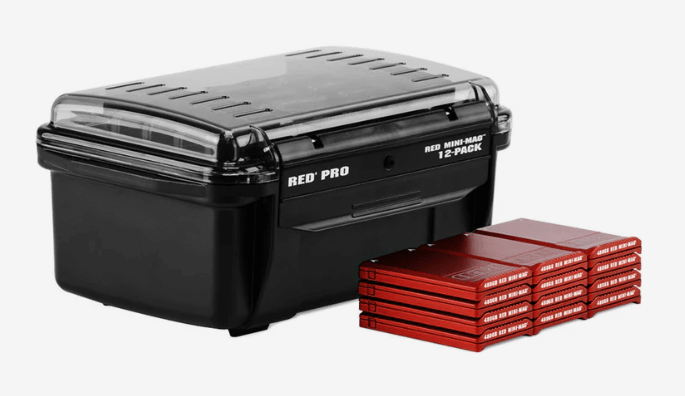

  • Media: RED MINI-MAG SSDs

View full details
