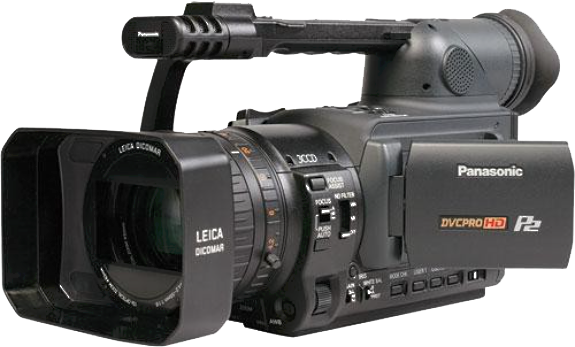

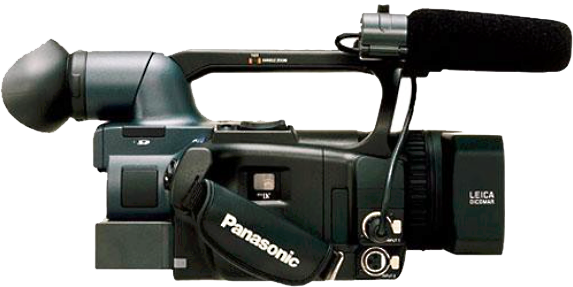

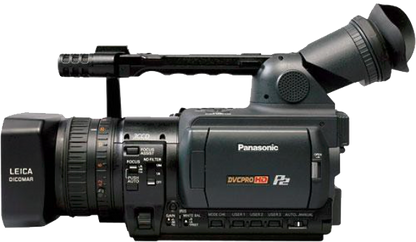

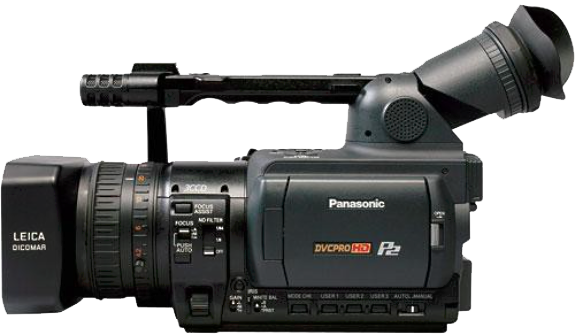

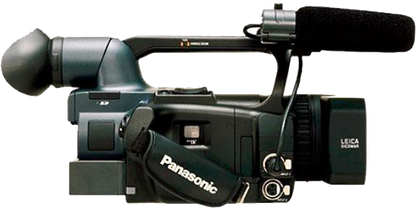

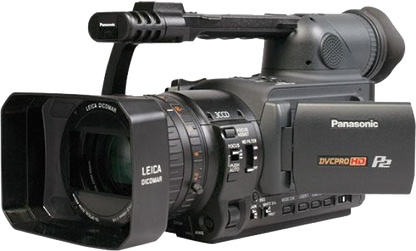

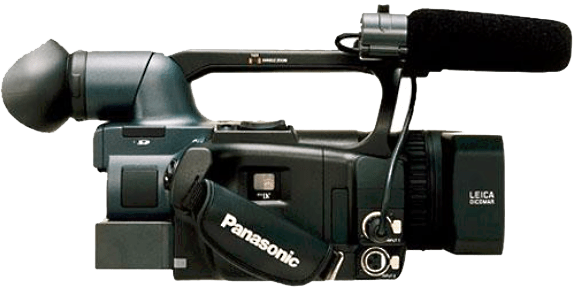

Panasonic HVX-200AP KIT
Panasonic HVX-200AP KIT
Panasonic HVX-200AP KIT

Panasonic HVX-200AP KIT

Regular price
$2,100.00
Sale price
$1,750.00
Shipping calculated at checkout.

PANASONIC HVX-200ap Pkg



  • (1) PANASONIC HVX200AP
  • (3) PANASONIC P2 32GB E
  • (4) PANASONIC CGA-D54 7.2v
  • (1) PANASONIC CGA-D54
  • (1) PANASONIC DUAL CHARGER LED
  • (1) PANASONIC HT80703 Dummy Battery
  • (1) PANASONIC Mini Rod Base Plate 80
  • (1) PANASONIC LENS LEICA HOOD HVX200
  • (1) PANASONIC MIC HOLDER HVX200



  • 1DESCRIPTION
  • 2P2 FLASH MEMORY RECORDING STORAGE
  • 3SUPERIOR QUALITY LENS
  • 4OPTICAL IMAGE STABILIZER
  • 5SUPER SENSITIVE CCDS
  • 6ADVANCED DIGITAL SIGNAL PROCESSOR
  • 7DVCPRO HD CODEC
  • 8VARICAM FUNCTIONS
  • 98 GAMMA MODES
  • 10PROFESSIONAL CAMERA FUNCTIONS
  • 11SUPER RELIABLE WORK FLOW PROCESS



Panasonic AG-HVX200 Specs

Signal System

NTSC

1080/60i, 30p, 24p

720/60p, 30p, 24p

480/60i, 30p, 24p

Image Device

3-CCD, 1/3"

16:9 Native Aspect Chips

Lens

Leica Dicomar 13 x Zoom

4.2 mm to 55 mm f/1.6

(35 mm Still Film Equivalence 32.5 to 423 mm)

82 mm Filter Diameter

Signal-to-Noise Ratio

Not Specified by Manufacturer

Horizontal Resolution

1080 Lines

Sensitivity

Not Specified by Manufacturer

Minimum Illumination

3 Lux

Vertical Smear

Not Specified by Manufacturer

Built-in Filters

1/8 ND, 1/64 ND

LCD Monitor

3.5"

Viewfinder

0.44"

Monochrome/Color Switchable

Scan Matching

Yes

Different Ranges for Different Record Modes

Memory Card Slot

SD Memory Cards for Scene-File Sharing

Two P2 Card Slots for Video

Shutter Speed Range

1/12 to 1/2000 sec (Range depends on Record Mode)

Gain Selection

0-18 dB Range

VTR

-

Tape Format

Mini Size DV Cassettes Only

Tape Speed

SP: 18.812 mm/s

LP: 12.555 mm/s

Signal-to-Noise Ratio

Not Specified by Manufacturer

Maximum Recording Time

60 Minutes with Mini DV Cassette

16 Minutes with 4 GB P2 Card

Audio Dynamic Range

Not Specified by Manufacturer

Audio Signal Format

16 bit/48kHz Four Channels

Audio Frequency Response

20Hz to 20kHz

Signal to Noise Ratio

Not Specified by Manufacturer

Input and Output Connectors

FireWire- 4-Pin (x 1)

Component Video- Special D Connector (x 1 output)

S-Video- 4-Pin (x 1 input and output both)

Composite Video- RCA (x 1 input and output both)

Audio- XLR (x 2 input)

Audio- RCA (x 2 input and output both)

Headphone- Stereo Mini (x 1)

USB- Type 2 (x 1)

Power- Special Coaxial (x 1 input)

Power Requirements

7.9 VDC

Power Consumption

14W

Operating Temperature

32-104°F (0-40°C)

Dimensions

6.7 x 7.1 x 15.2" (16.9 x 18 x 39 cm)

Weight

5.2 lb (2.4 kg)
