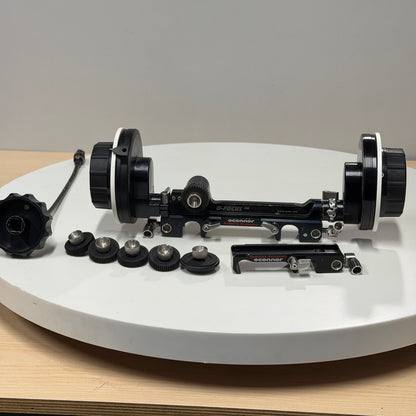

OCONNOR O-FOCUS DM CINE SET CFF-1 (Studio Follow Focus)

OCONNOR O-FOCUS DM CINE SET CFF-1 (Studio Follow Focus)

Oconnor

$2,750.00 USD
$3,850.00 USD $2,750.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

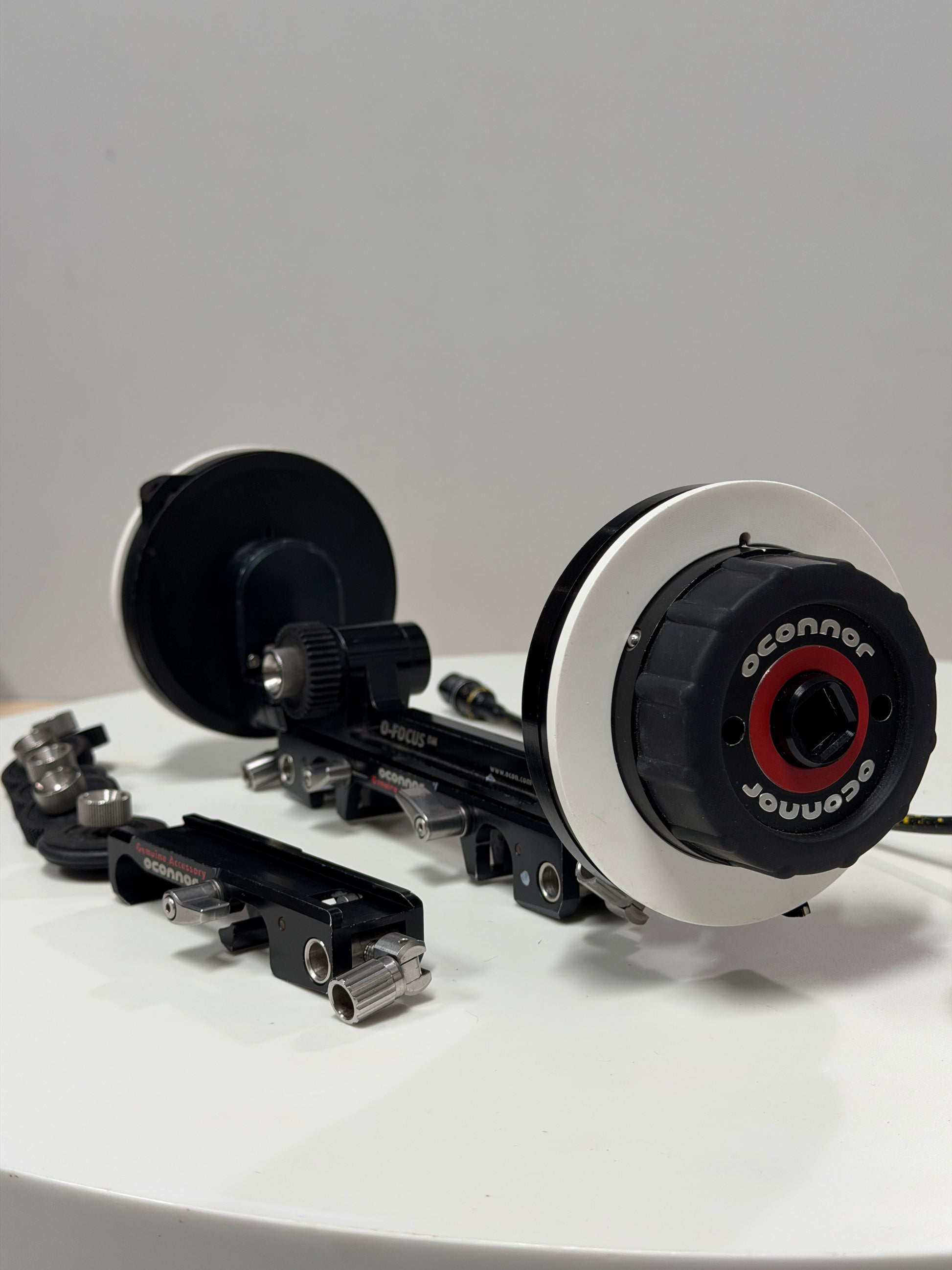

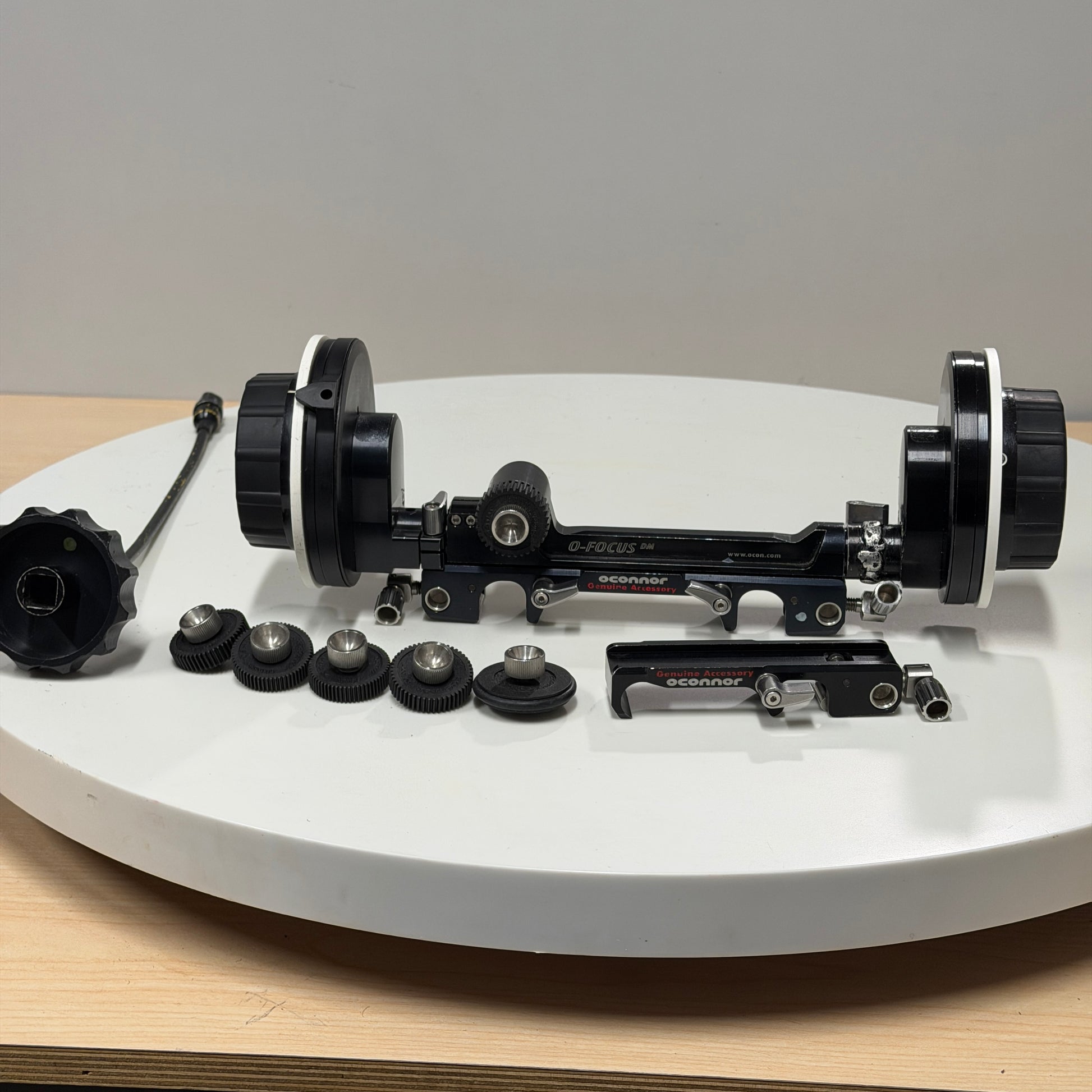

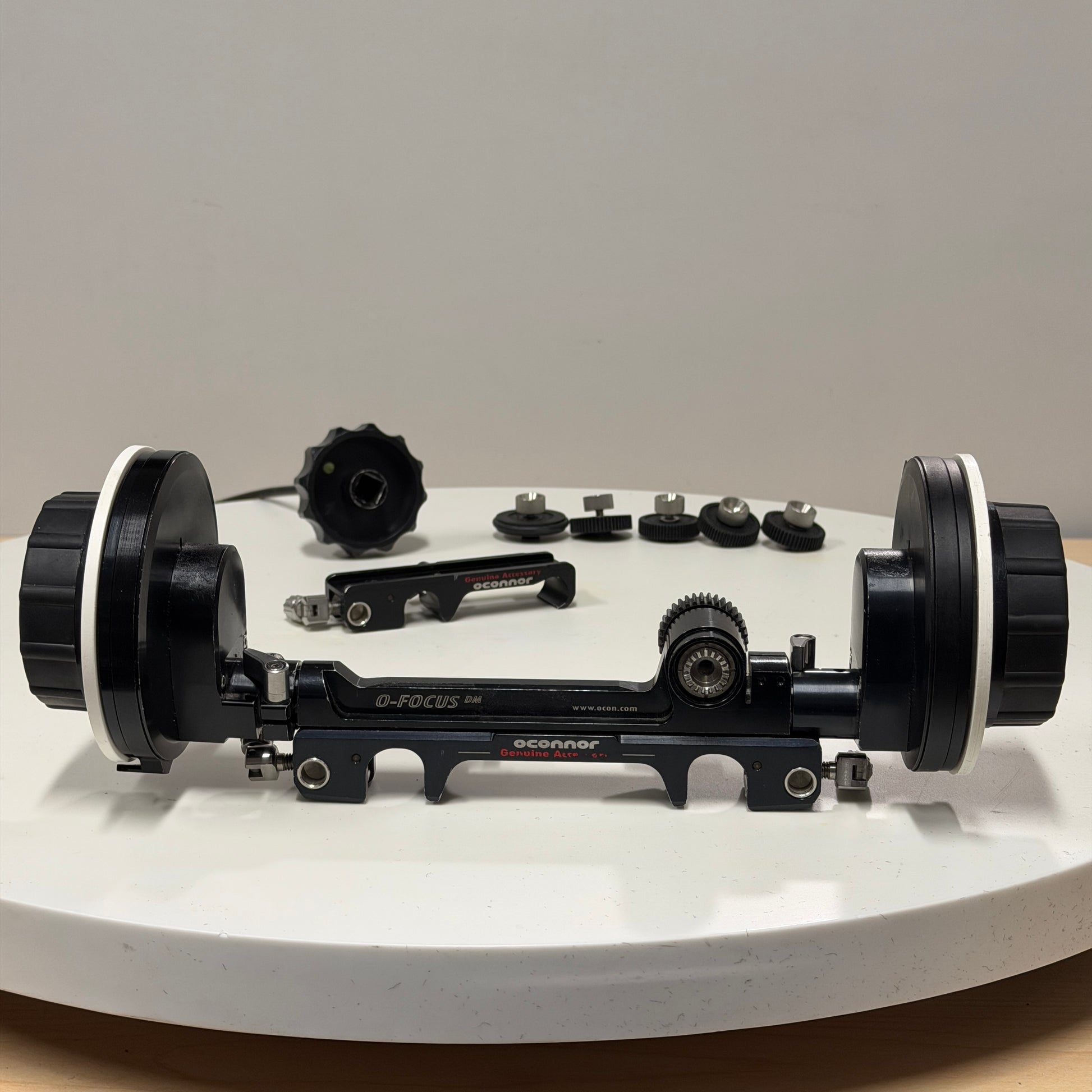

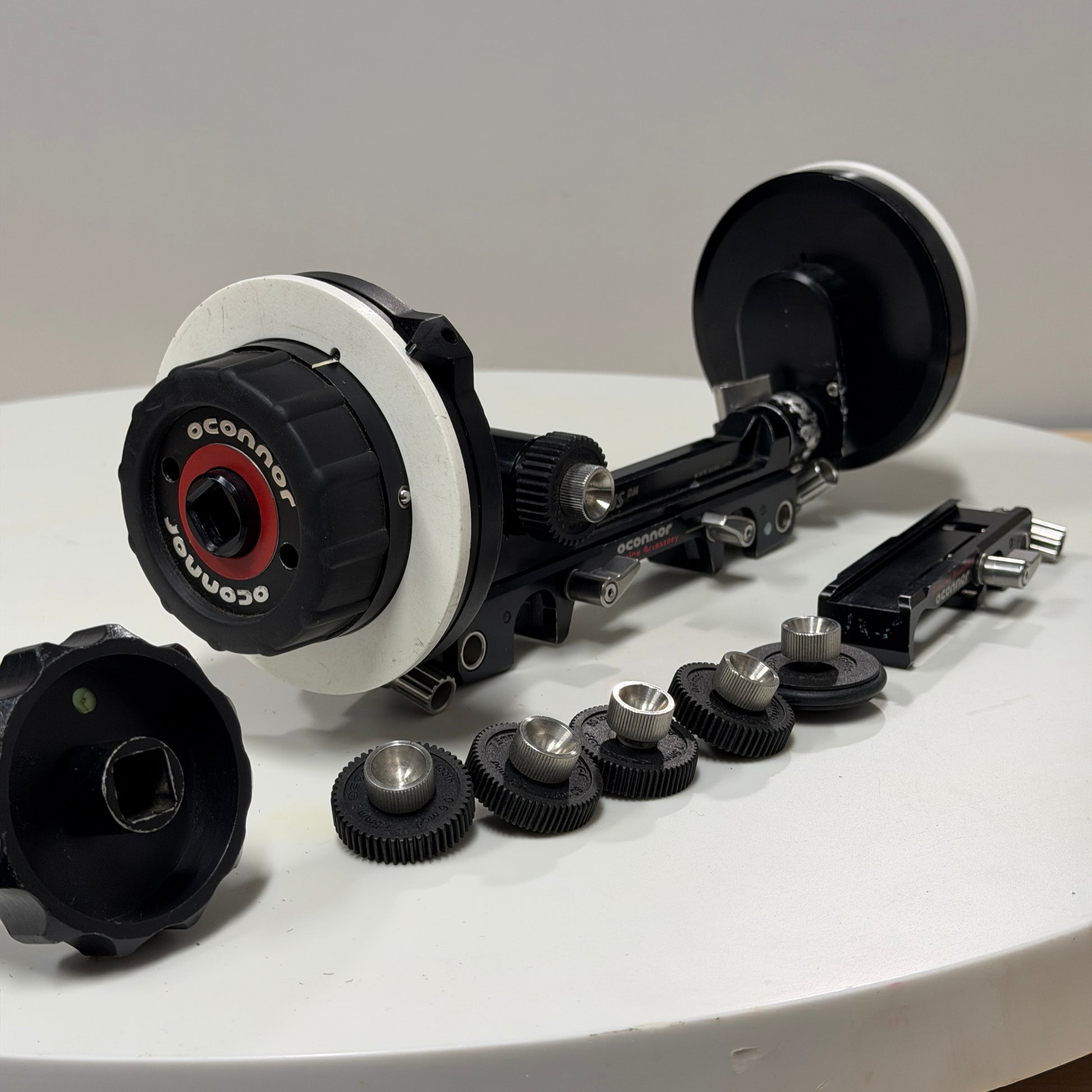

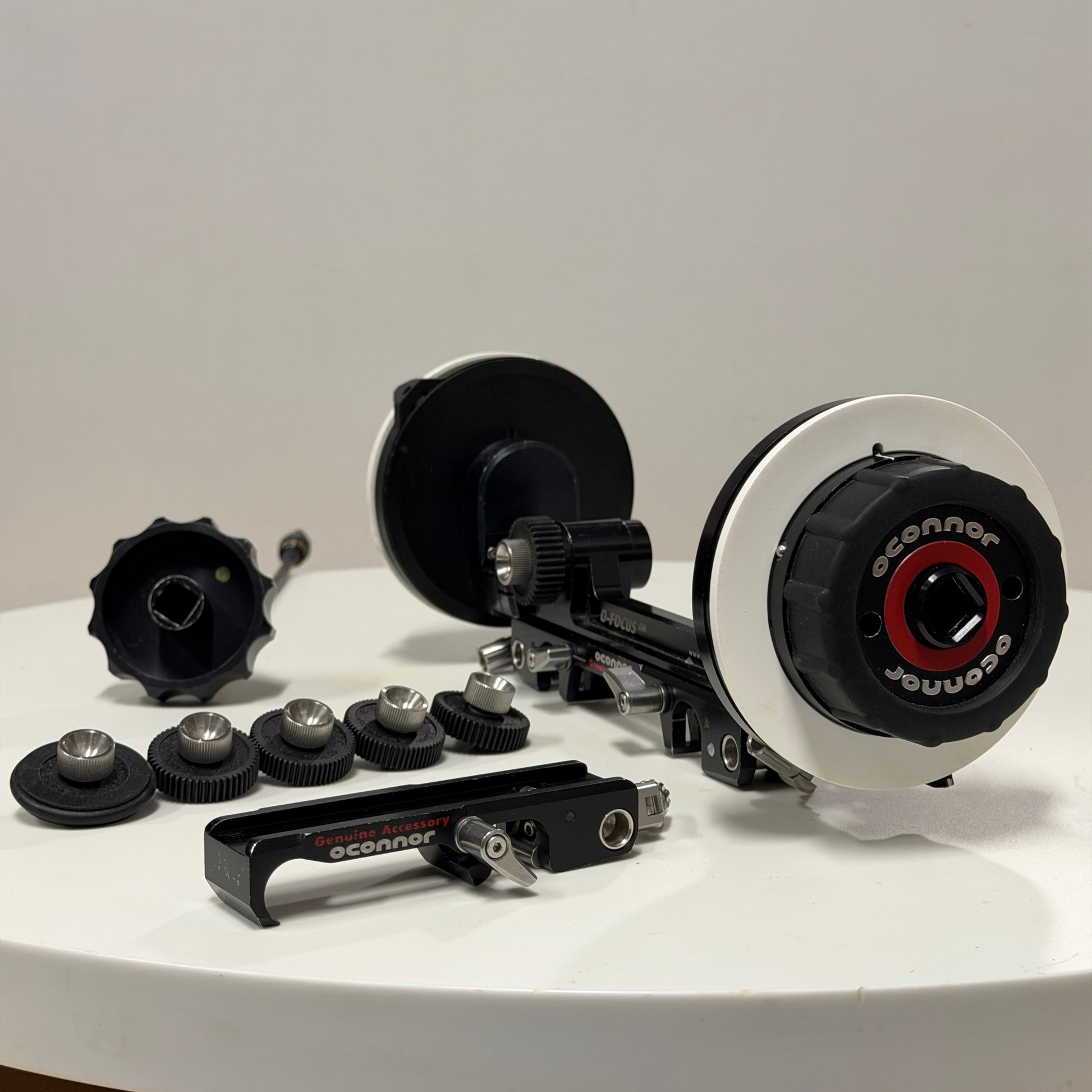

OCONNOR O-FOCUS DM CINE SET

INCLUDES: (Studio Follow Focus)

  • C1242-0002 O-Focus DM Cine Set w/ Offset Studio Handwheel
  • C1241-1100 CFF-1 Studio Hand wheel
  • C1242-1300 O-Focus DM Main Bridge
  • C1241-1540 15mm LWS Bridge
  • C1241-1600 Gear .8 mod 43 Tooth 6mm Face
  • C1241-1700 Gear .8 mod 35 Tooth 10mm Face
  • C1241-1800 Gear .6 mod 50 Tooth 7.5mm Face
  • C1241-1900 Gear .5 mod 60 Tooth 7.5mm Face
  • C1242-1001 Gear Friction Driver
  • C1241-1530 2 Pack Flat Studio Marking Discs

The OConnor O-Focus DM (Dual Mini) Cine Set is unique due to its ultra-low-profile, double-sided, direct-drive gearbox design that eliminates swing arms and provides, for the first time, a specialized, high-performance follow focus for both cine and still lenses. Its modular system allows for switching handwheels to match specific lens types and features

Key Unique Features:
  • Modular Handwheels (Cine vs. Photo): The Cine Set features a 1:1.8 ratio "Studio" handwheel, which, when paired with the 1:0.75 bridge, creates a specialize
    transmission ratio tailored for cinema lenses. The Photo set provides a distinct ratio tailored to lenses with shorter focus throws.
  • Direct-Drive Gearbox: The unit uses a toothless friction driver and direct-drive mechanism (no swing arm) for "zero-play" accuracy.
  • Offset Studio Handwheel: The handwheel attaches offset to the shaft, allowing for 360-degree rotation to optimize viewing of witness marks and providing clearance for the camera to rest on the ground without damaging the handwheel.
  • Extremely Low Profile: The design is engineered to work with large-diameter cinema lenses without interference.
  • Tapered Flank Couplings: Inherited from the CFF-1 follow focus, these couplings eliminate play between the handwheel and the bridge
