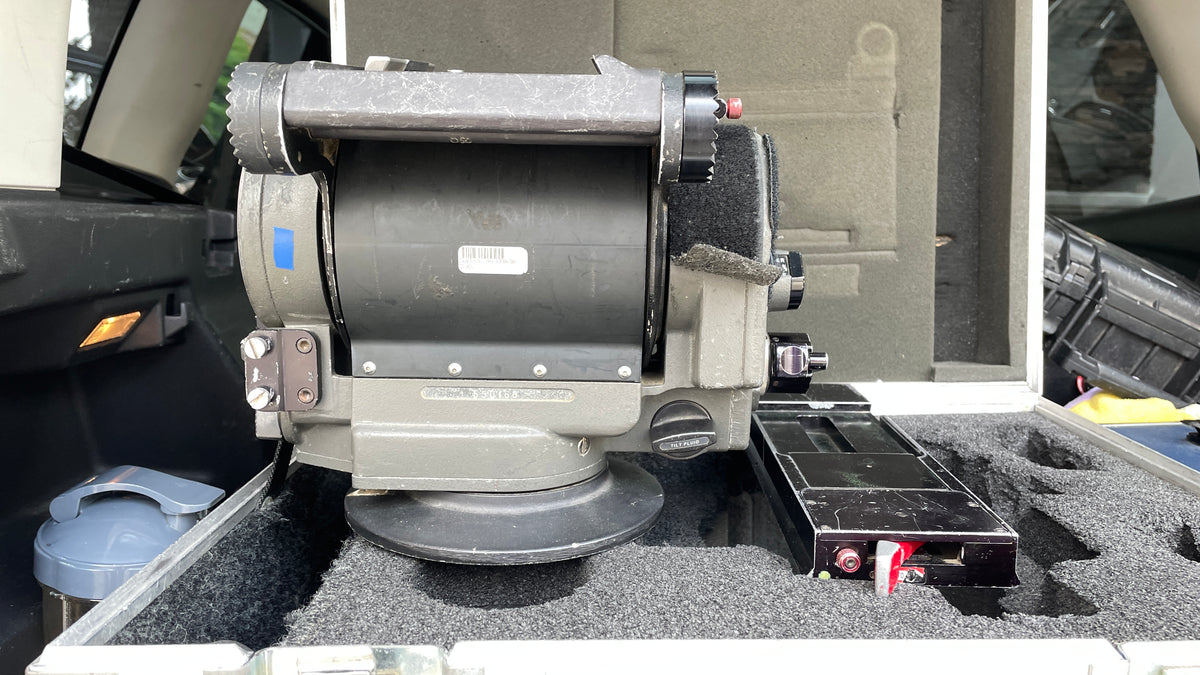

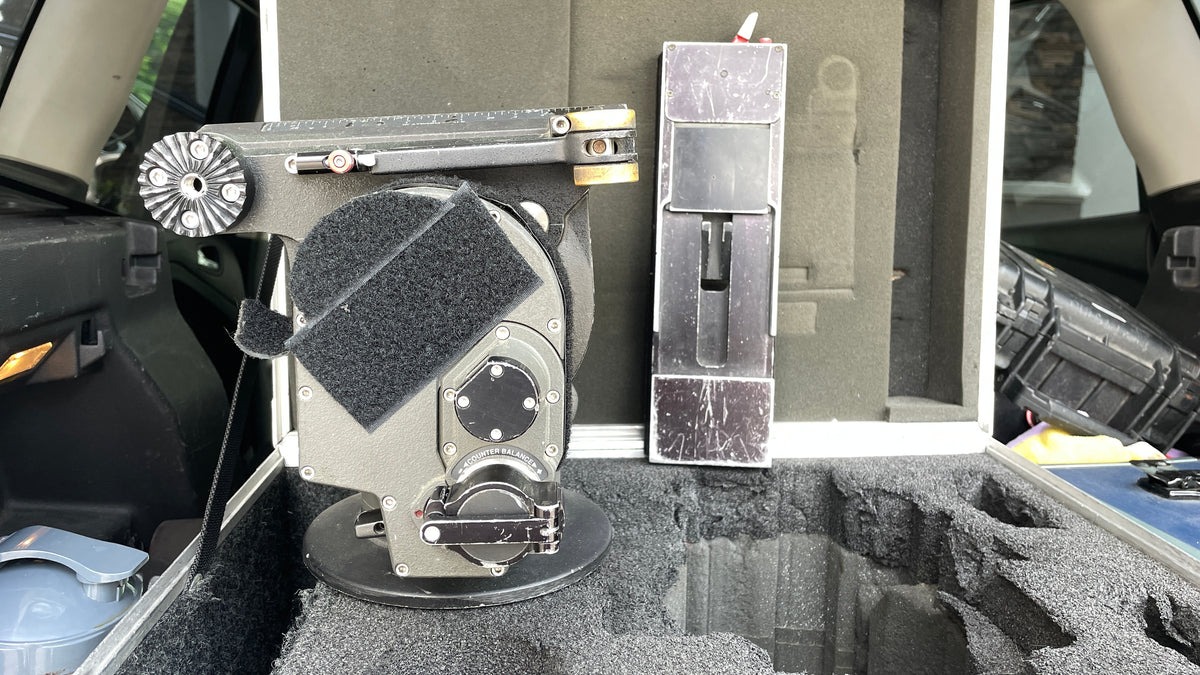

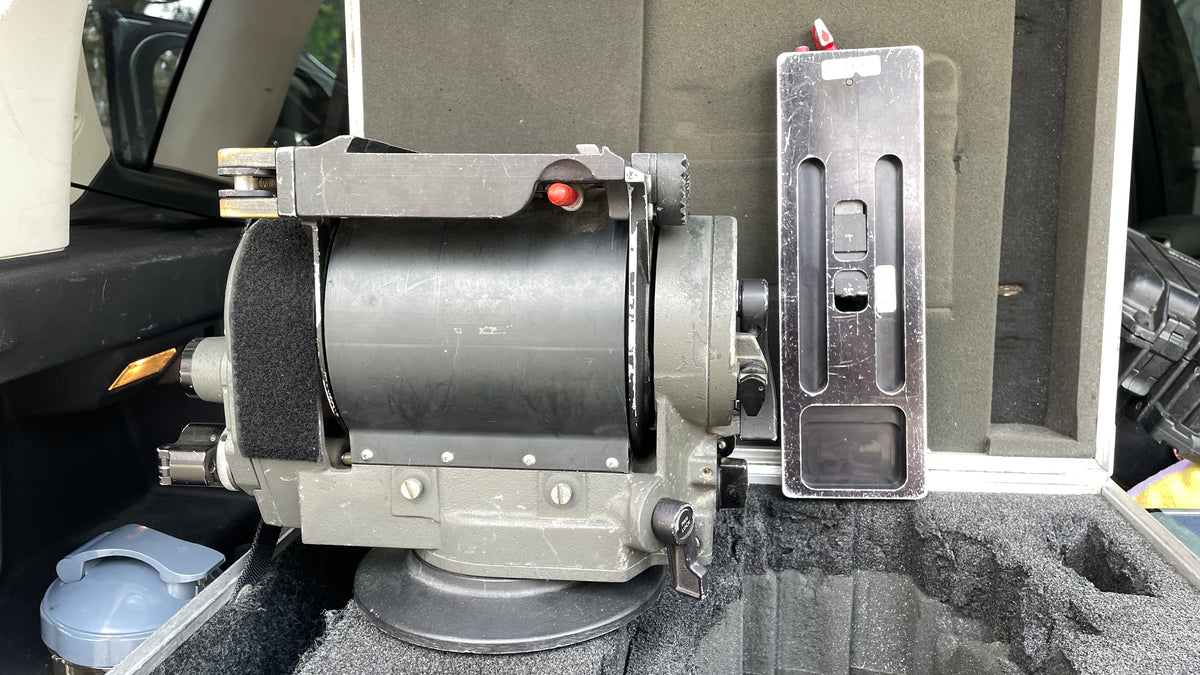

OCONNOR 2575C FLUID HEAD PKG
OCONNOR 2575C FLUID HEAD PKG
Oconnor
Couldn't load pickup availability

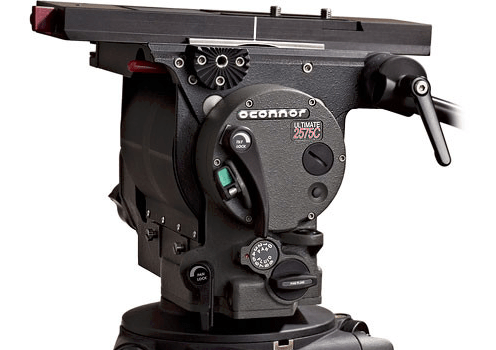

The technical specifications for the OConnor Ultimate 2575C cinema fluid head are detailed below:
Payload & Tilt Performance
| Feature | Specification |
| Max Payload @ 4" (10.2 cm) CoG | 133 lbs / 60.5 kg |
| Max Payload @ 6" (15.2 cm) CoG | 105 lbs / 47.7 kg |
| Max Payload @ 8" (20.3 cm) CoG | 87 lbs / 39.5 kg |
| Minimum Payload | 0 lbs (counterbalances down to zero) |
| Tilt Range | $\pm 90^\circ$ continuous tilt |
| Pan Range | $360^\circ$ continuous pan |
Physical & Mechanical Specs
-
Fluid Head Weight: 22.9 lbs / 10.4 kg
-
Dimensions (H × W × D): 8.4 in × 12.4 in × 8.6 in / 21.3 cm × 31.5 cm × 21.8 cm
-

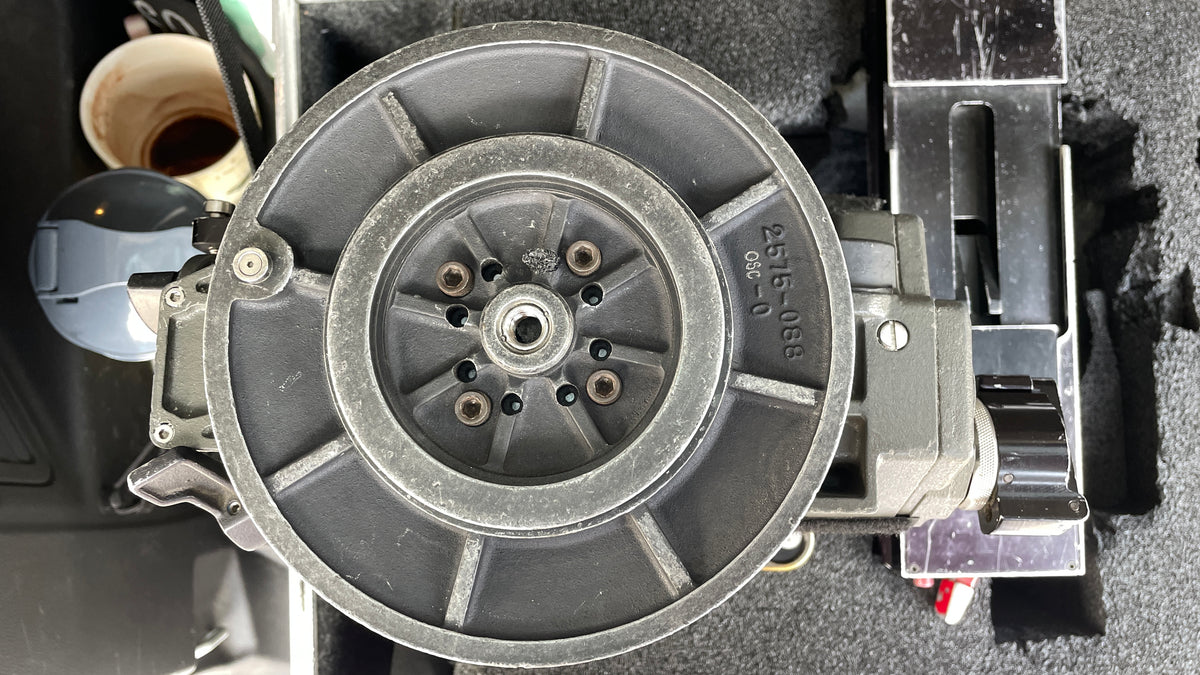

Base Mount Options: Standard Mitchell flat base (interchangeable with 150mm ball base option)
-
Camera Platform Options: Euro Quick Release platform (120mm plate) or Sideload platform
-
Pan Handles: Dual rosettes for pan arm mounting (30° bend handle + extension)
Movement Controls & Features
-
Counterbalance: Continuous sinusoidal counterbalance with a rear fold-out crank handle and numerical readout display (0–99%)
-
Drag Adjustment: Stepless, infinitely variable fluid drag system for pan and tilt
-
Brakes: Caliper brake locks for pan and tilt
-
Leveling Indicator: Built-in illuminated spirit level
-
Operating Temperature: $-40^\circ\text{F}$ to $+140^\circ\text{F}$ ($-40^\circ\text{C}$ to $+60^\circ\text{C}$)
Key Differences: 2575C vs. 2575B vs. 2575D
-
Upgrade from 2575B: The 2575C added dual platform scales, updated internal fluid drag module valving, and improved ergonomics.
-
Transition to 2575D: The subsequent 2575D model shifted the platform locking controls entirely to the operator's side (left side) and introduced a one-touch finger-actuated safety release catch for the platform level.
