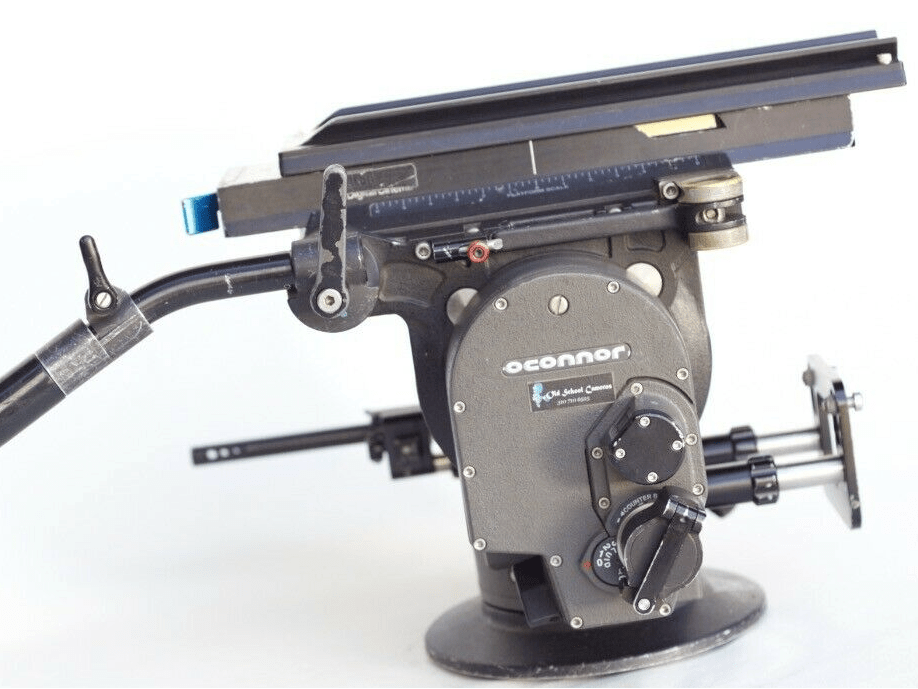

OCONNOR 2575B FLUID HEAD Package

OCONNOR 2575B FLUID HEAD Package

Oconnor

$7,500.00 USD
$8,500.00 USD $7,500.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

The technical specifications for the OConnor Ultimate 2575B cinema fluid head are detailed below:

Payload & Tilt Performance

Feature Specification
Max Payload @ 4" (10.2 cm) CoG 133 lbs / 60.3 kg
Max Payload @ 6" (15.2 cm) CoG 105 lbs / 47.7 kg
Max Payload @ 8" (20.3 cm) CoG 87 lbs / 39.5 kg
Minimum Payload 0 lbs (counterbalances down to zero)
Tilt Range $\pm 90^\circ$ continuous tilt
Pan Range $360^\circ$ continuous pan

Physical & Mechanical Specs

  • Fluid Head Weight: 22.9 lbs / 10.4 kg

  • Dimensions (H × W × D): 8.4 in × 12.4 in × 8.6 in / 21.3 cm × 31.5 cm × 21.8 cm

  • Base Mount Options: Standard Mitchell flat base (interchangeable with 150mm ball base option)

  • Camera Mounting Plate: Euro Quick Release platform (or Sideload platform) with safety lock

  • Pan Handles: Four rosettes for dual pan arm placement

Movement Controls & Features

  • Counterbalance: Continuous sinusoidal counterbalance with a fold-out crank handle and numerical counter readout display

  • Drag Adjustment: Stepless, ultra-smooth fluid drag system for pan and tilt

  • Brakes: Single-handed squeeze-action locks for pan and tilt

  • Ergonomics: Left-hand soft handrest, platform release lever with single-finger safety catch, and illuminated bubble level
