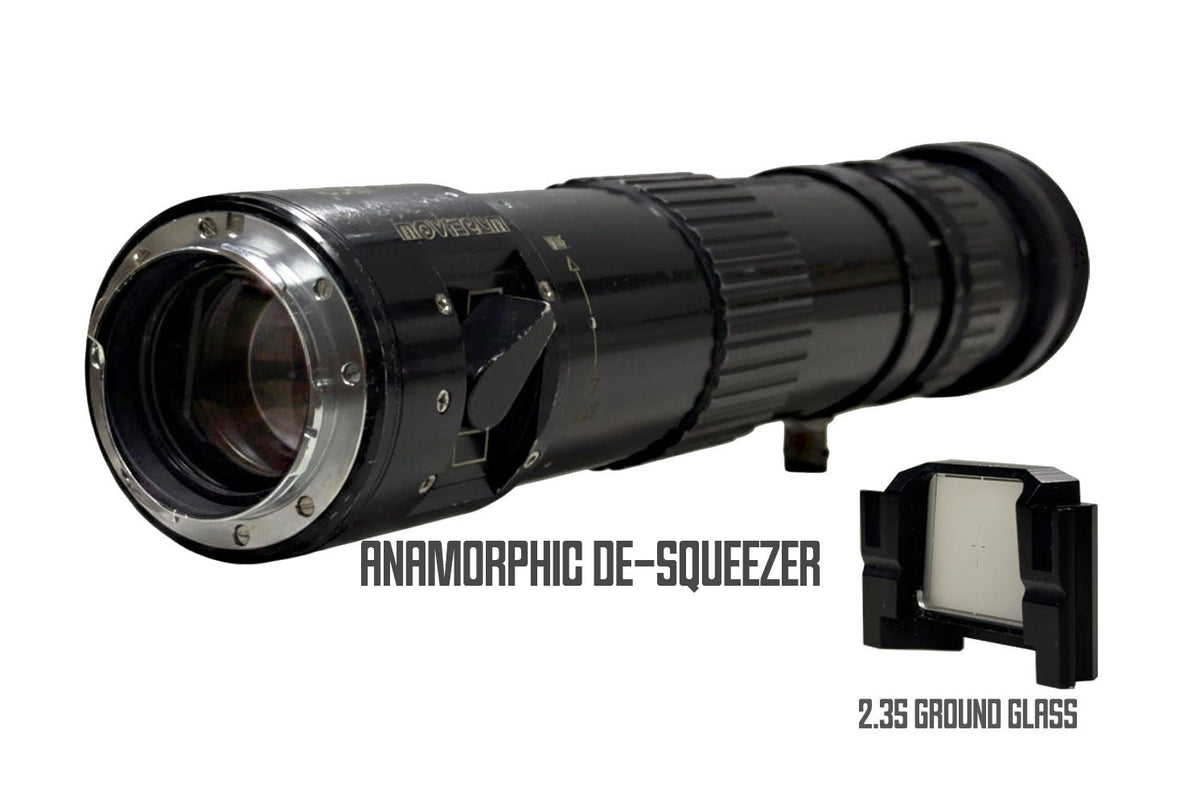

MOVIECAM Anamorphic Desqueezer 2.35 Long Eyepiece & Ground Glass

Name: MOVIECAM Anamorphic Desqueezer 2.35 Long Eyepiece & Ground Glass
Brand: Moviecam
Price: 5000.00 USD
Availability: InStock

Moviecam

$5,000.00 USD

~~$7,200.00 USD~~ $5,000.00 USD

$5,000.00 each

Sale Sold out

Taxes included. Shipping calculated at checkout.

MOVIECAM ANAMORPHIC 2.35 DESQUEEZER VF

MOVIECAM ANAMORPHIC 2.35 GROUND GLASS

Moviecam Accessories, Electronics and Support are fully serviced certified ARRI Technician by Old School Cameras.

PACKAGE INCLUDES:

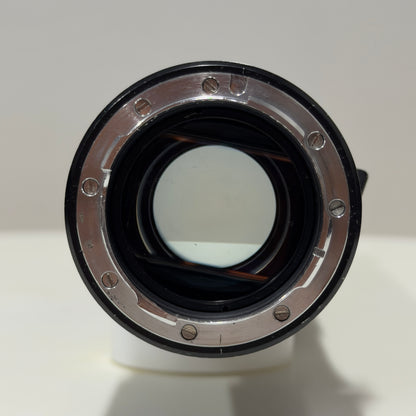

(1) Moviecam Anamorphic 2.35 Desqueezer / Long Eyepiece
(1) Moviecam Anamorphic 2.35 Academy Ground Glass (Desqueeze)
(1) Moviecam Front Cap
(1) Moviecam Eye Cup

KEY FEATURES: (ANAMORPHIC DESQUEEZER)

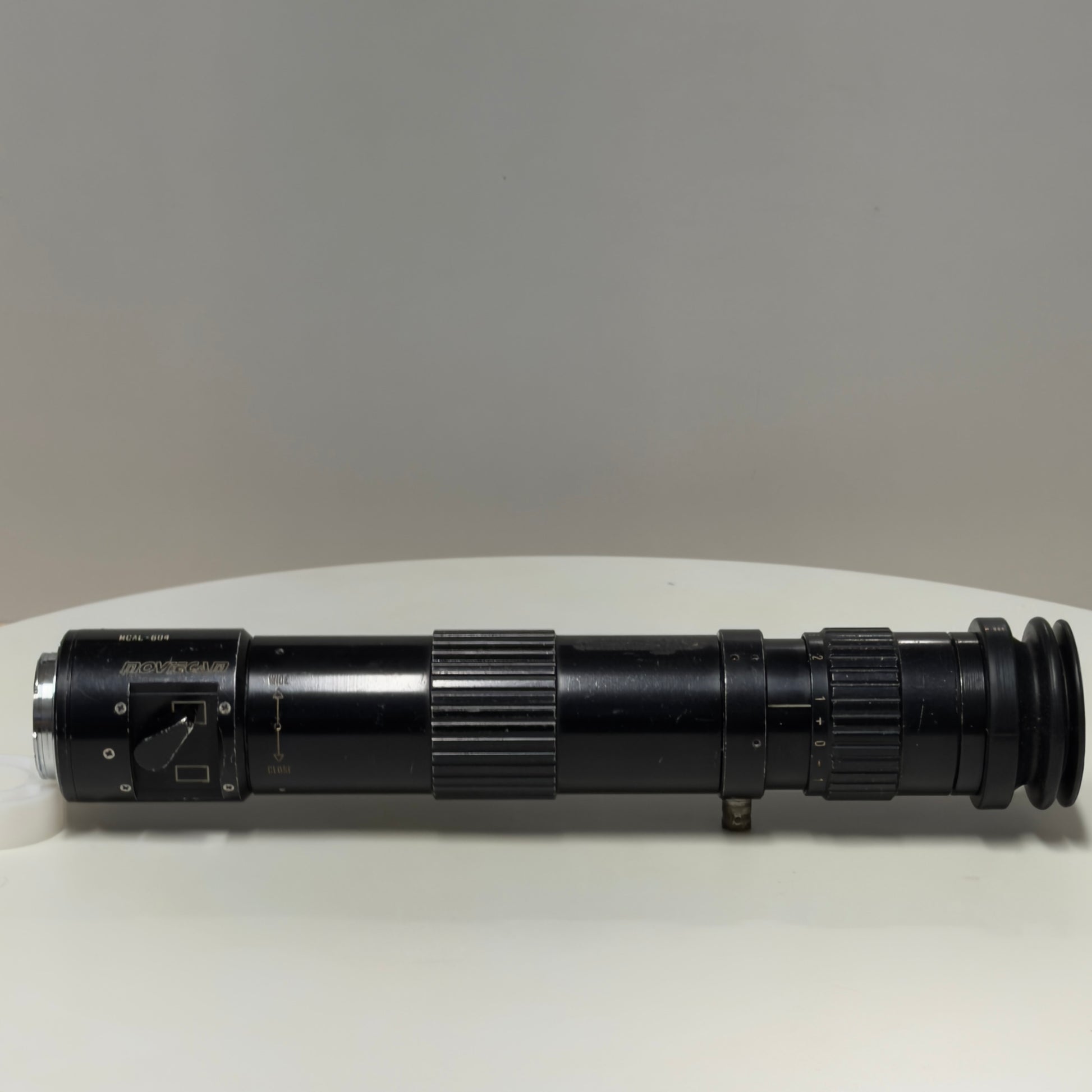

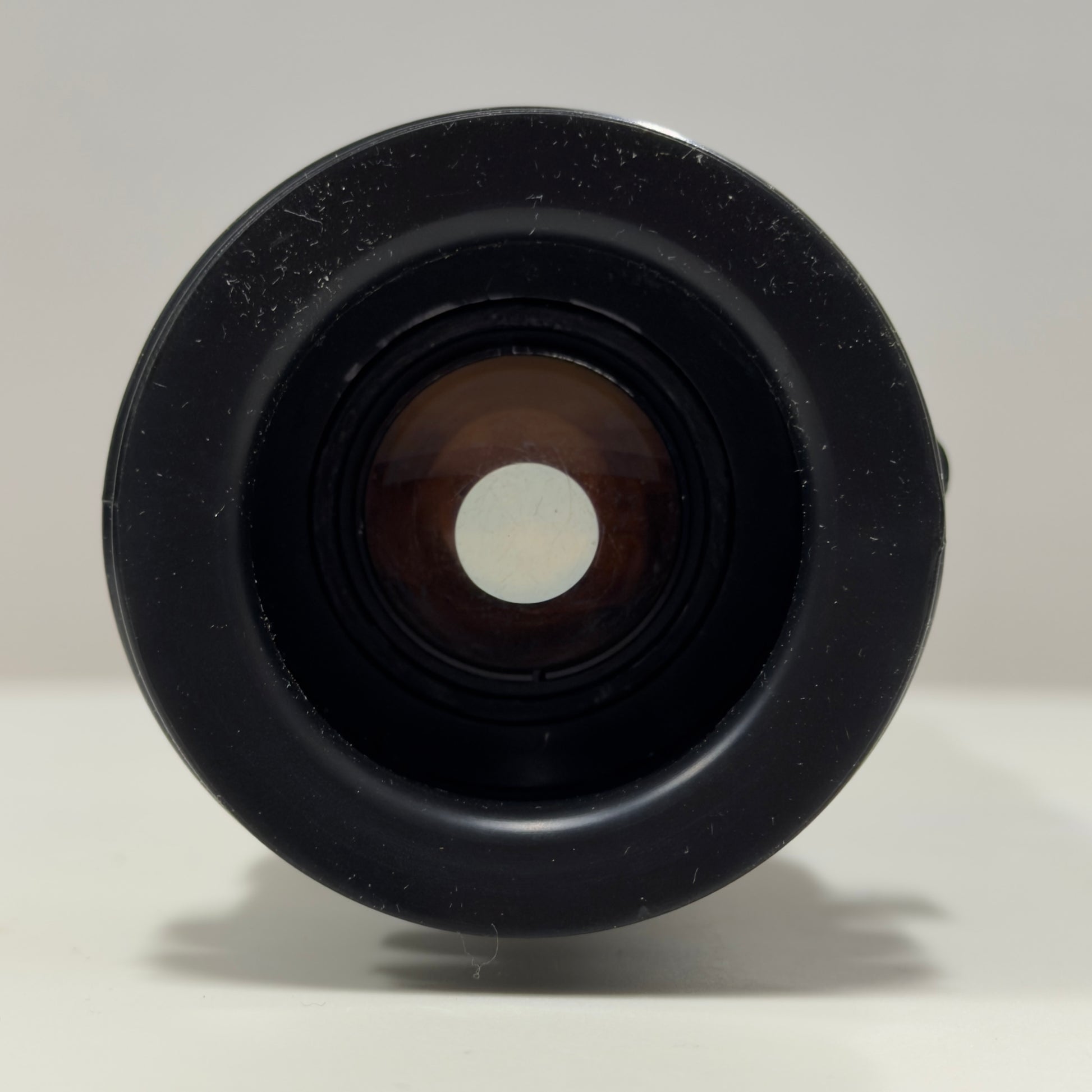

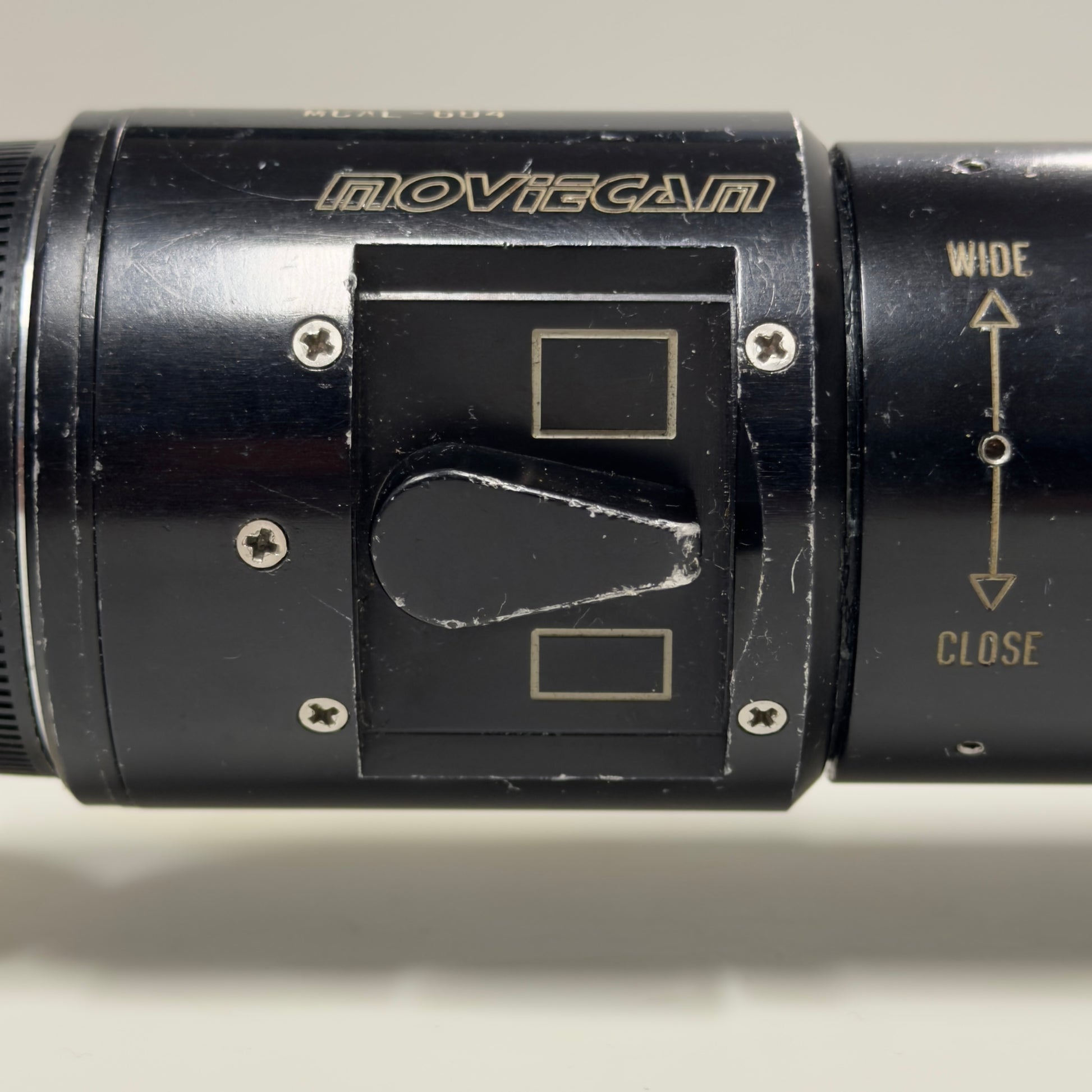

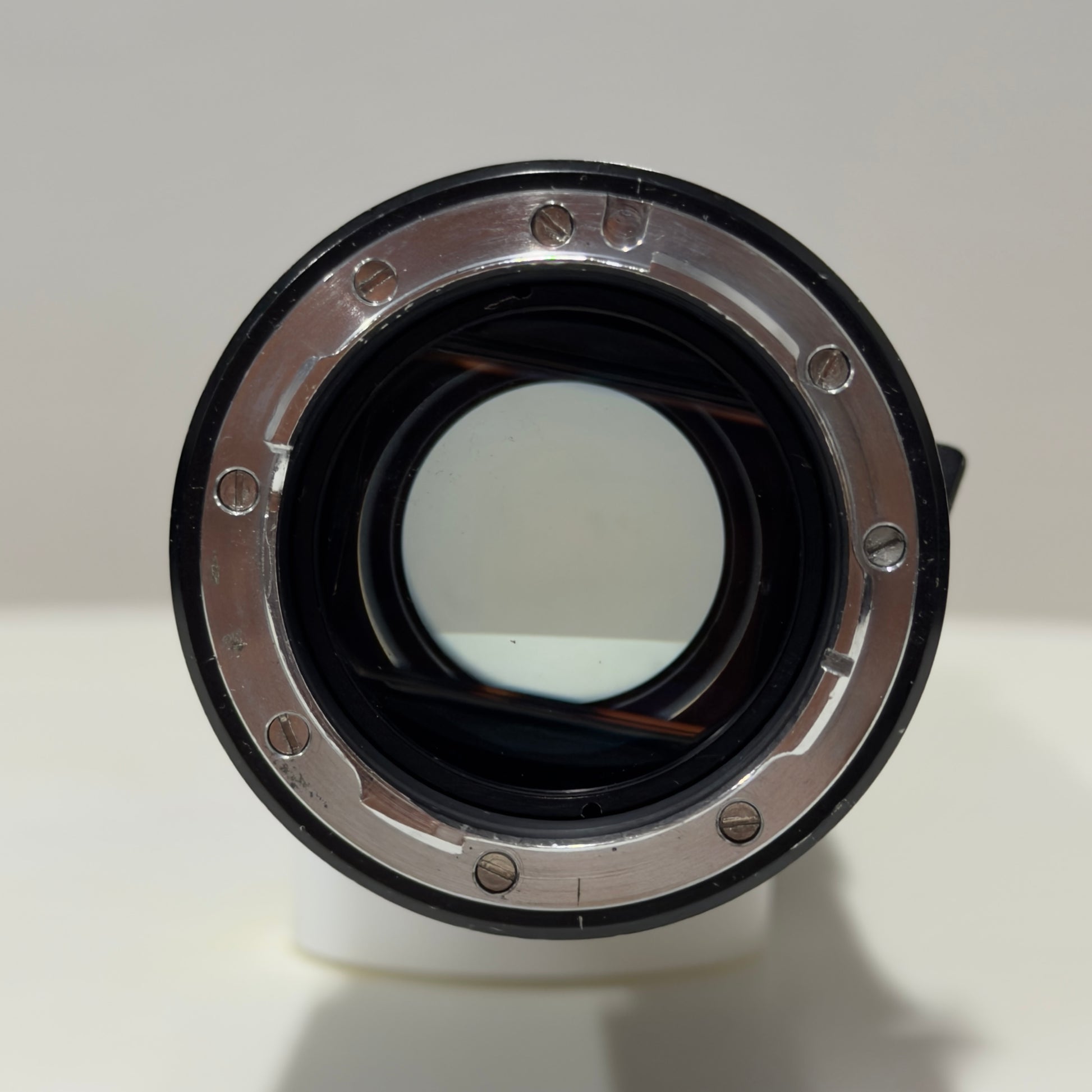

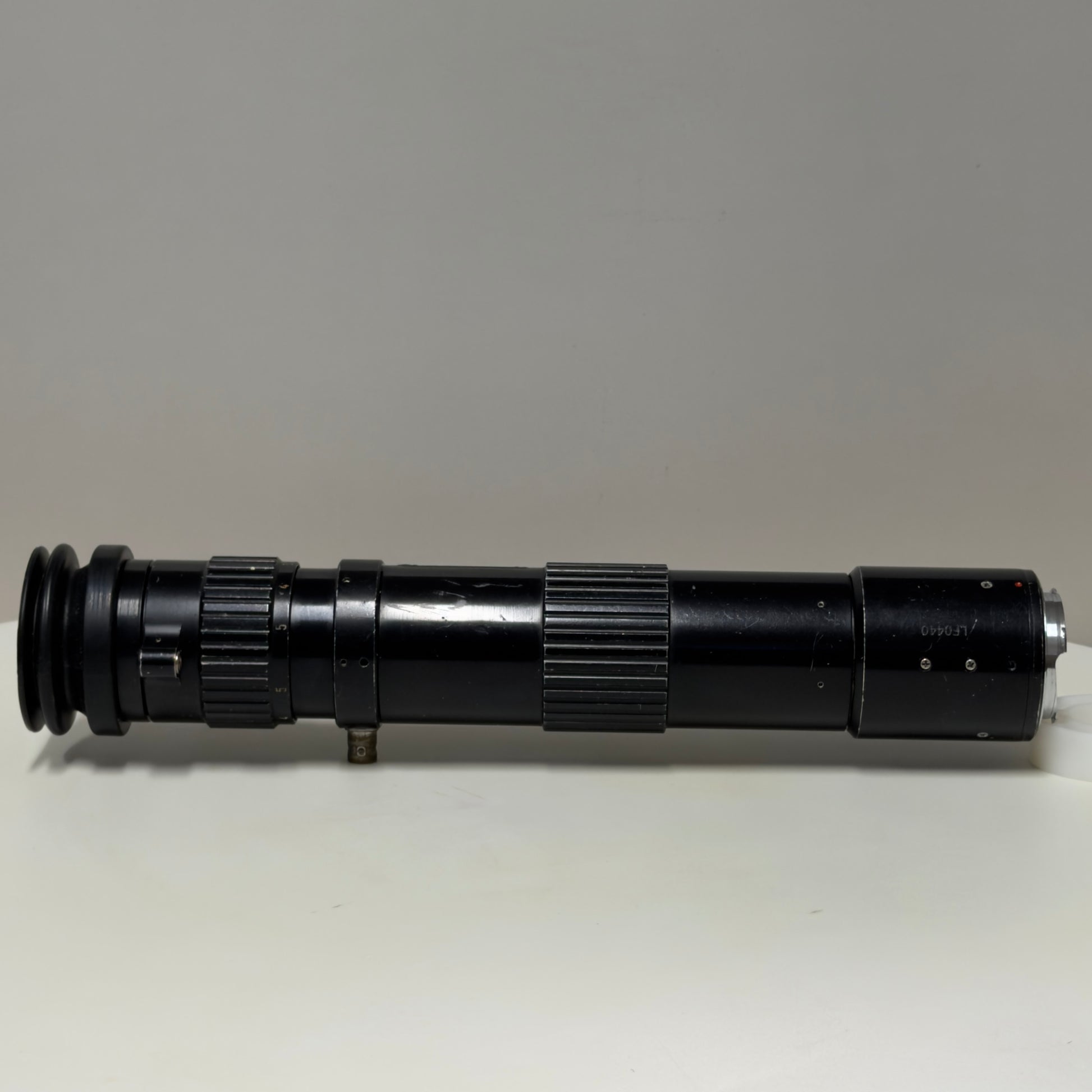

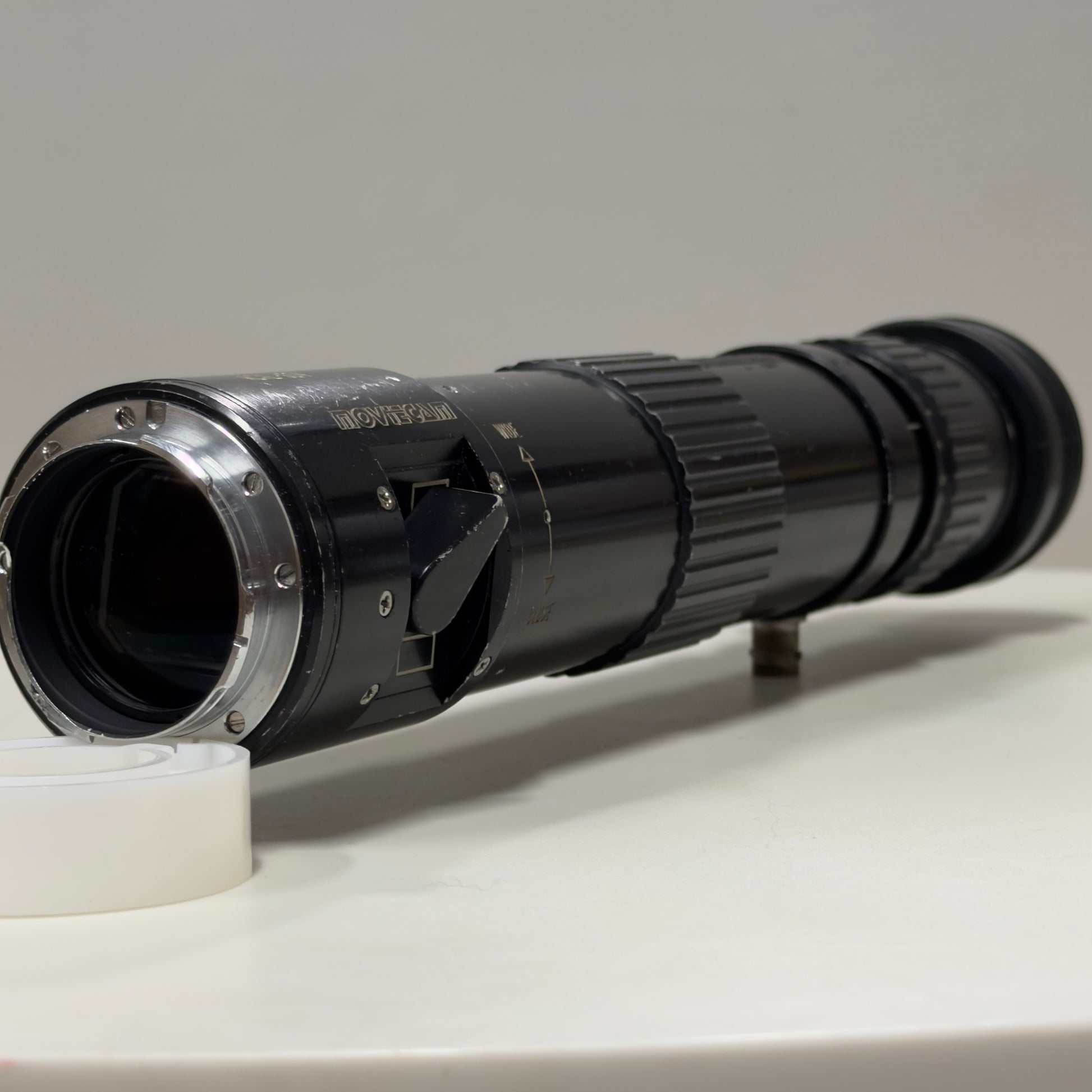

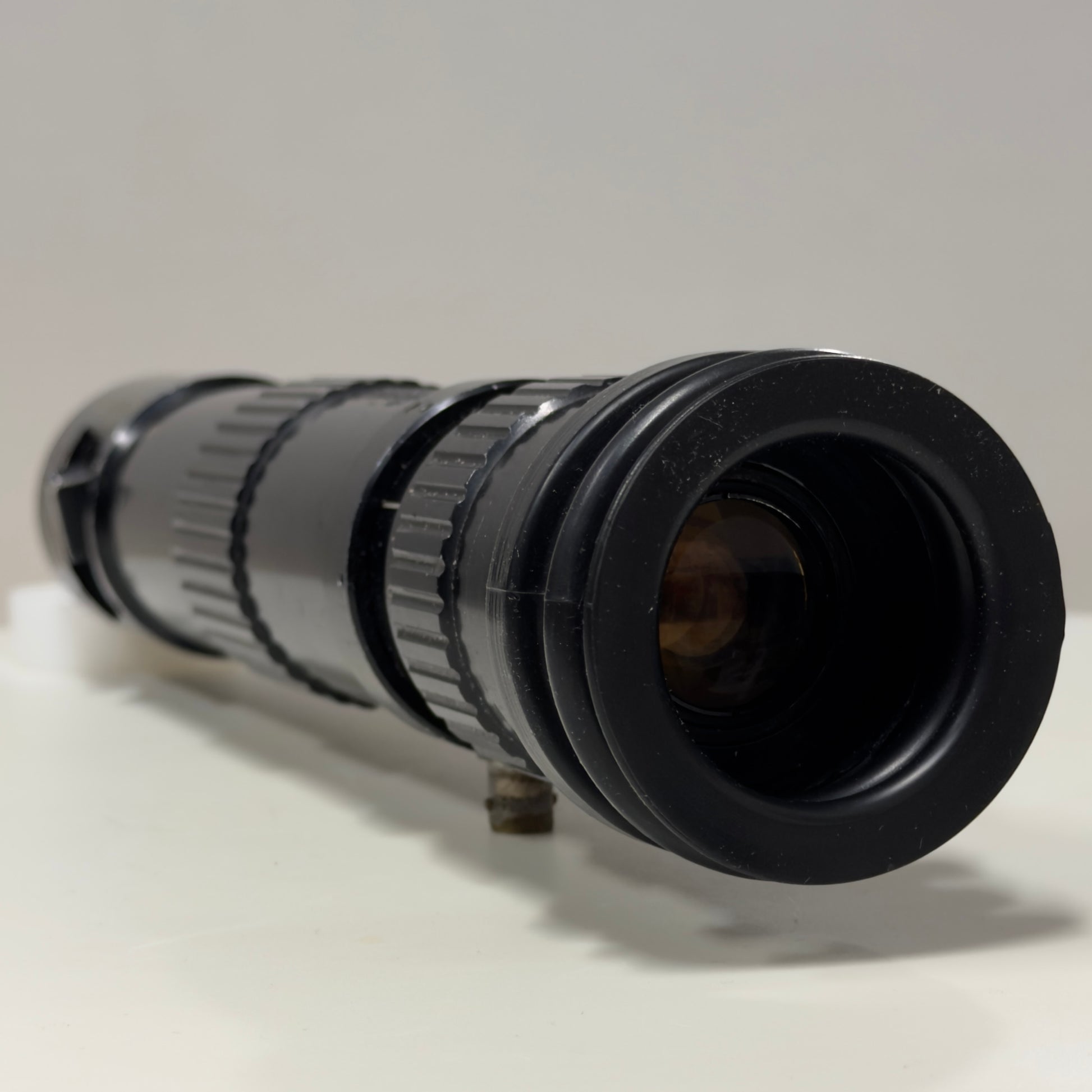

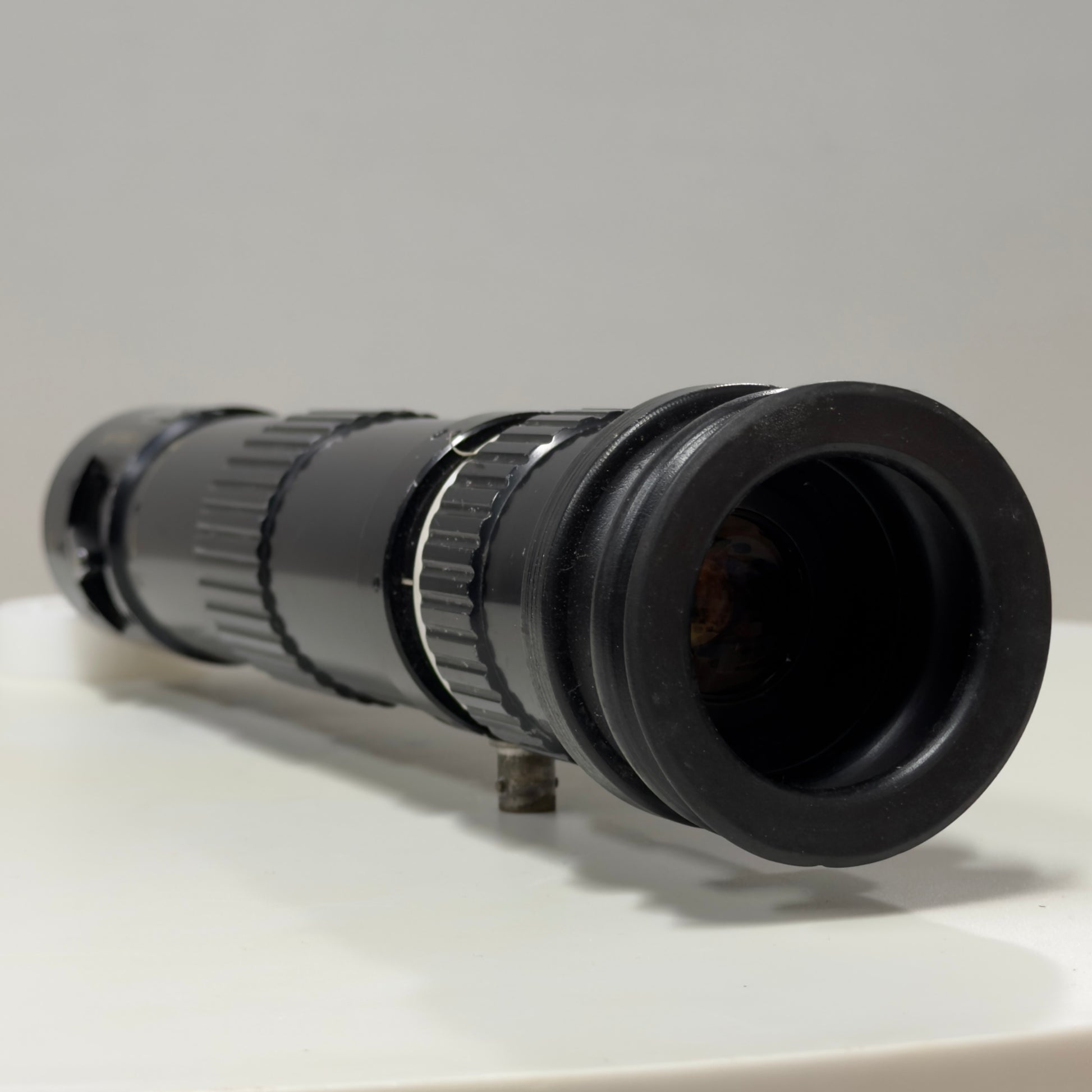

The 2.35 Anamorphic Long Eyepiece (often referred to as an anamorphic desqueezer or viewfinder extension) for the Moviecam SL Academy is designed to optically "un-squeeze" the image in the viewfinder when shooting with 2x anamorphic lenses.

Core Specifications

Anamorphic Desqueeze: Optically corrects the 2:1 horizontal squeeze typical of anamorphic lenses, allowing the operator to see a correctly proportioned 2.35:1 (or 2.39:1) image.
Viewfinder Compatibility: Directly compatible with the standard Moviecam SL Viewfinder and orientable viewfinder systems.
Extension Length: Features a "long" extension tube design (often between 10" to 12") to facilitate comfortable operating while using a handheld rig or an extension finder rod.
Optics: High-quality, multi-coated glass elements designed to minimize chromatic aberration and maintain brightness while desqueezing the image.
Mechanical Features:
- Heated Eyecup Compatibility: Standard mount for the Moviecam heated eyecup to prevent fogging.
- Diopter Correction: Adjustable range typically from -5 to +5 diopters.
- Rotatability: 360-degree rotation for comfortable use on either the left or right eye. [1, 2, 3, 4, 5, 6, 7, 8, 9, 10]

Related System Components

The eyepiece is part of a modular viewfinder system. To use it effectively on a Moviecam SL Academy, you may also need:

Anamorphic Ground Glass: Required in the camera gate to properly mask the 2.35:1 / 2.39:1 frame.
Eyepiece Leveling Rod: Keeps the eyepiece horizontal as the camera pans or tilts.
Moviecam SL MK-2 Upgrades: Later versions (MK-2) offer improved ergonomics and better integration with these long eyepiece accessories. [1, 2, 3]

For detailed technical drawings or specific serial number compatibility, manuals and resources are available through the Moviecam SL Manual provided by cinematography experts like David Elkins

_____________________

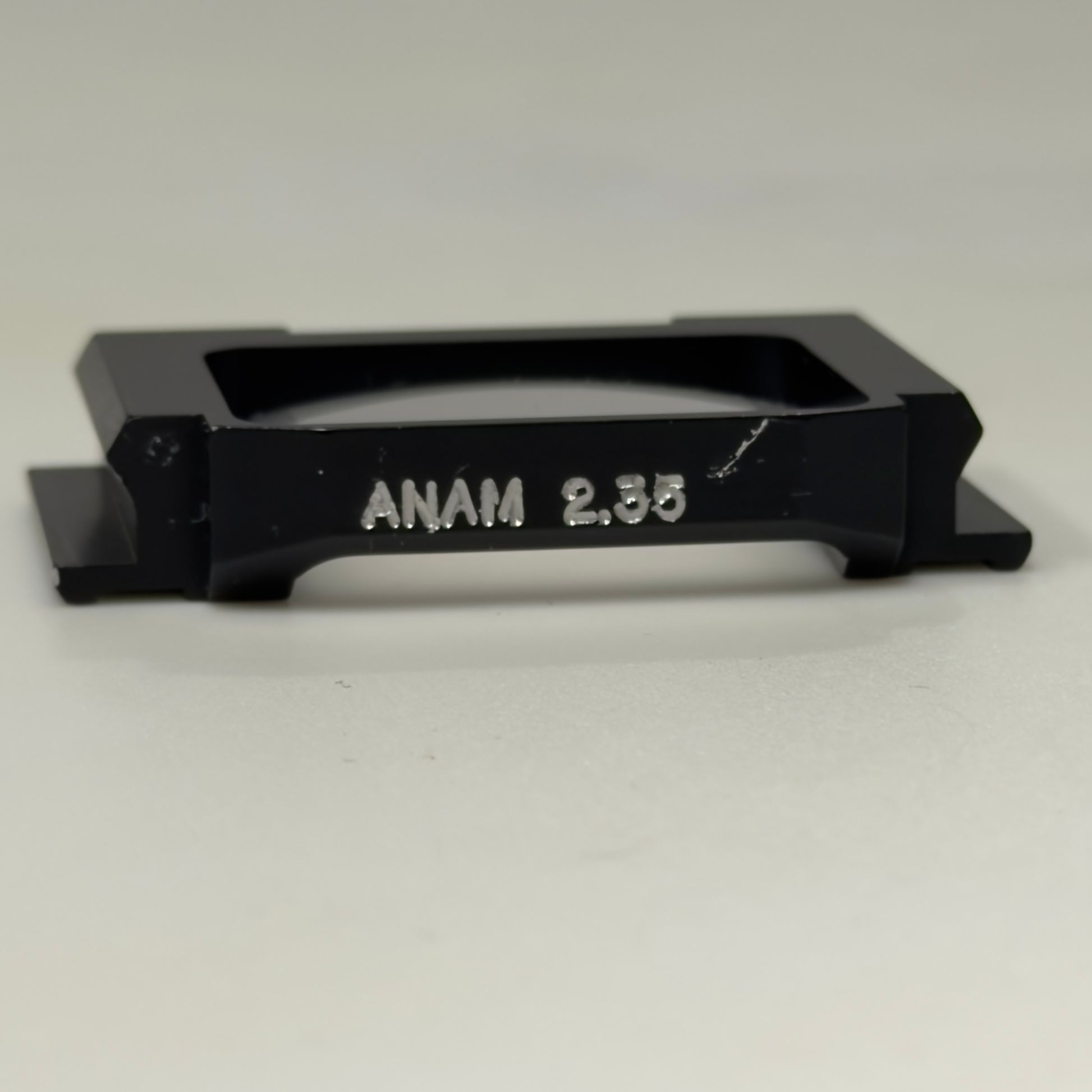

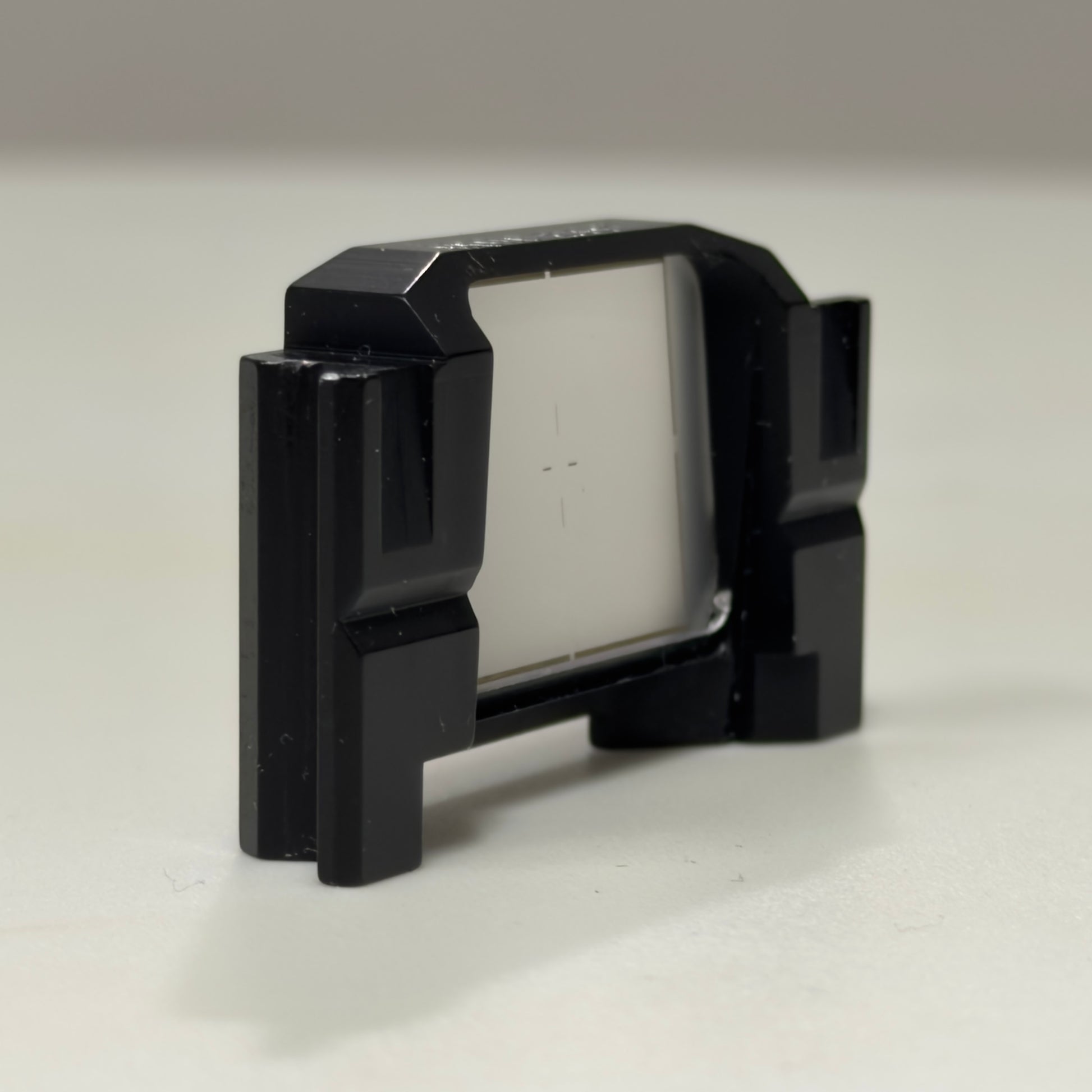

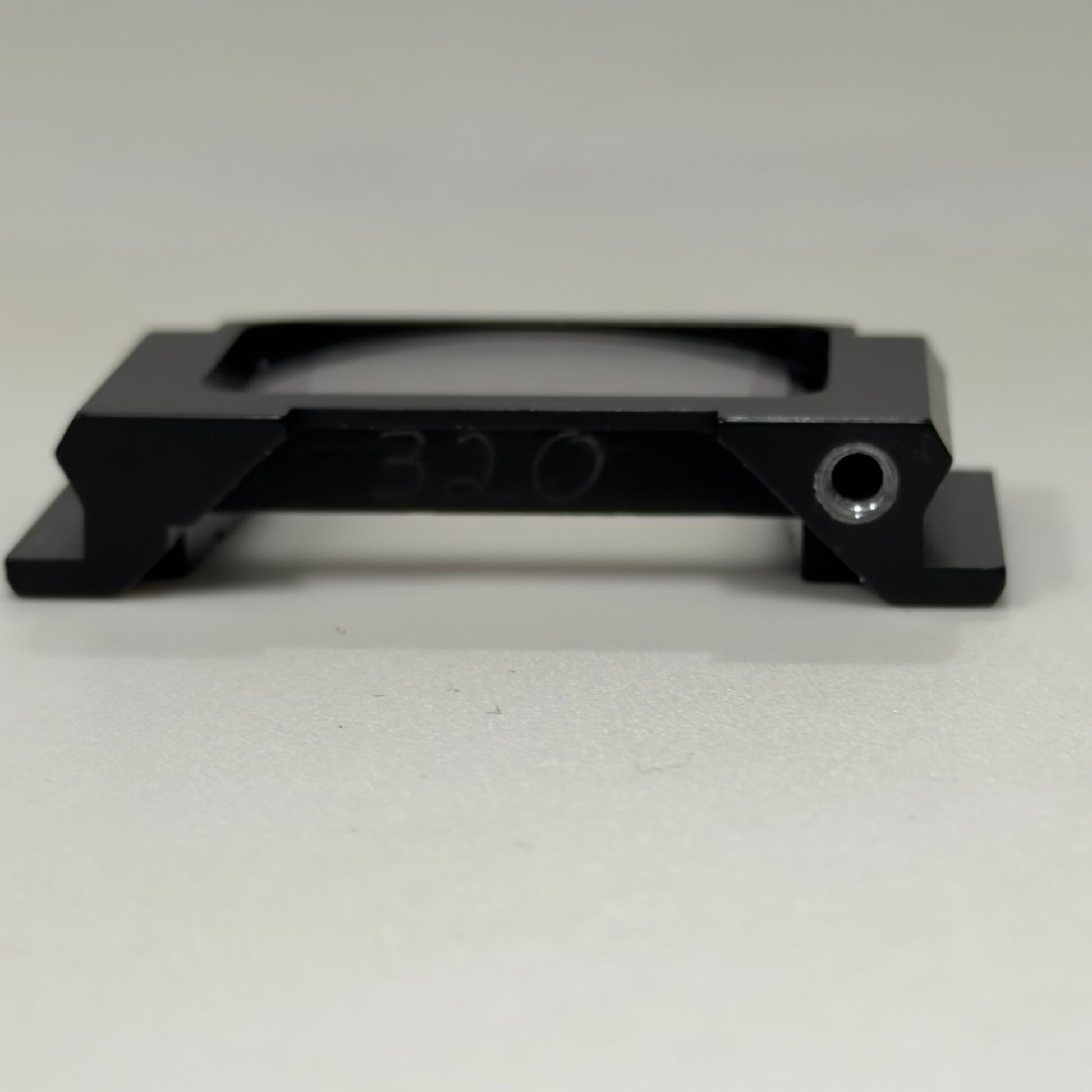

KEY FEATURES: (GROUND GLASS)

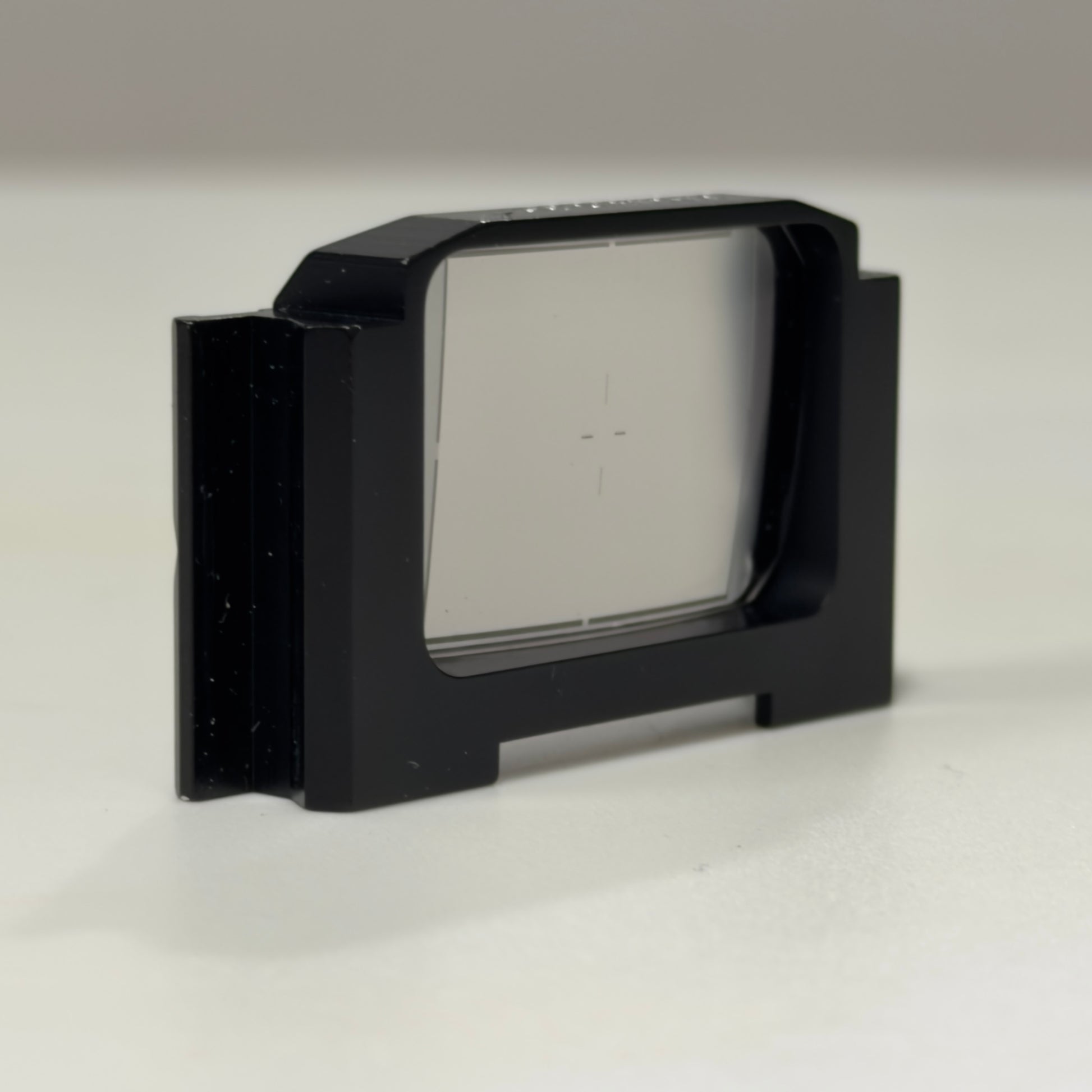

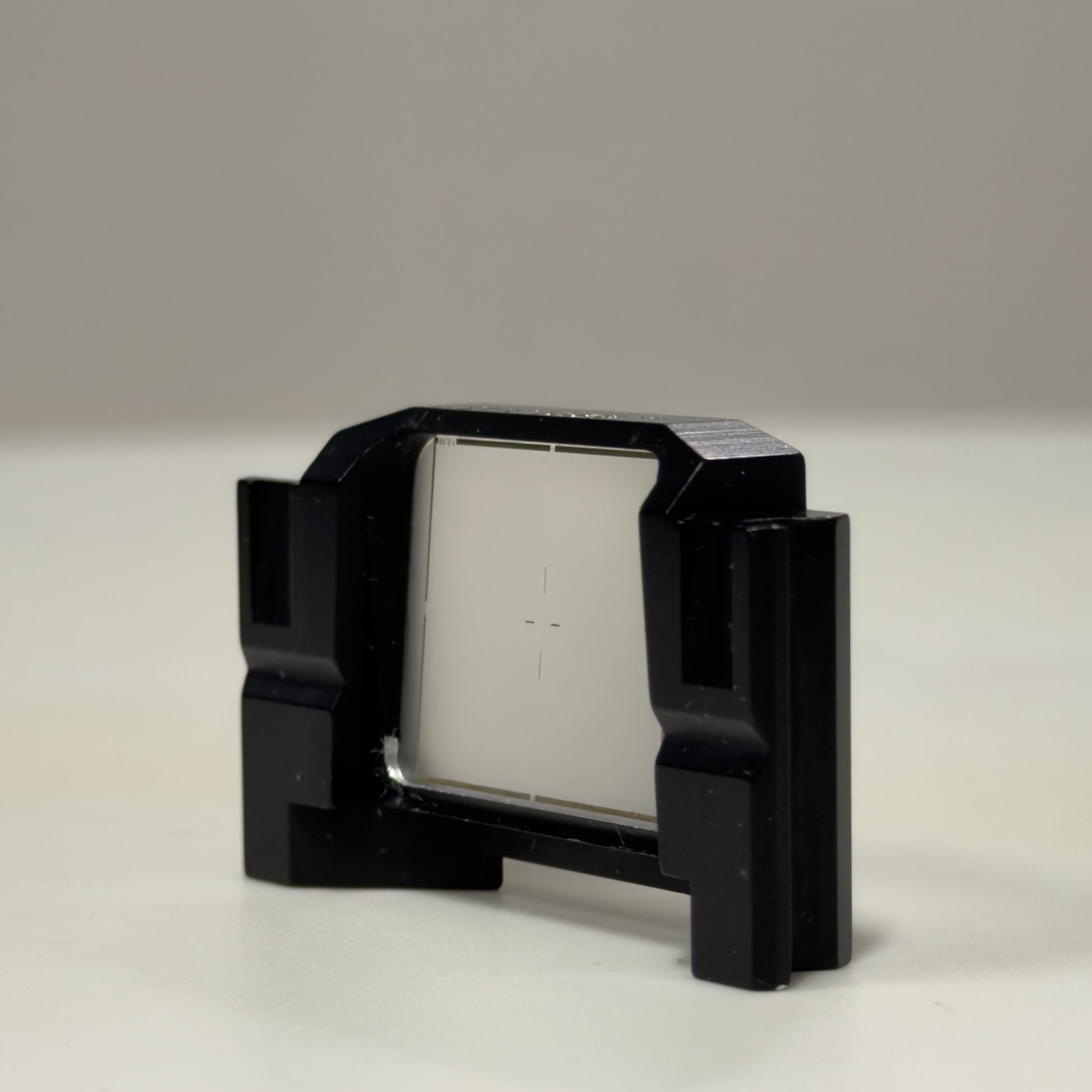

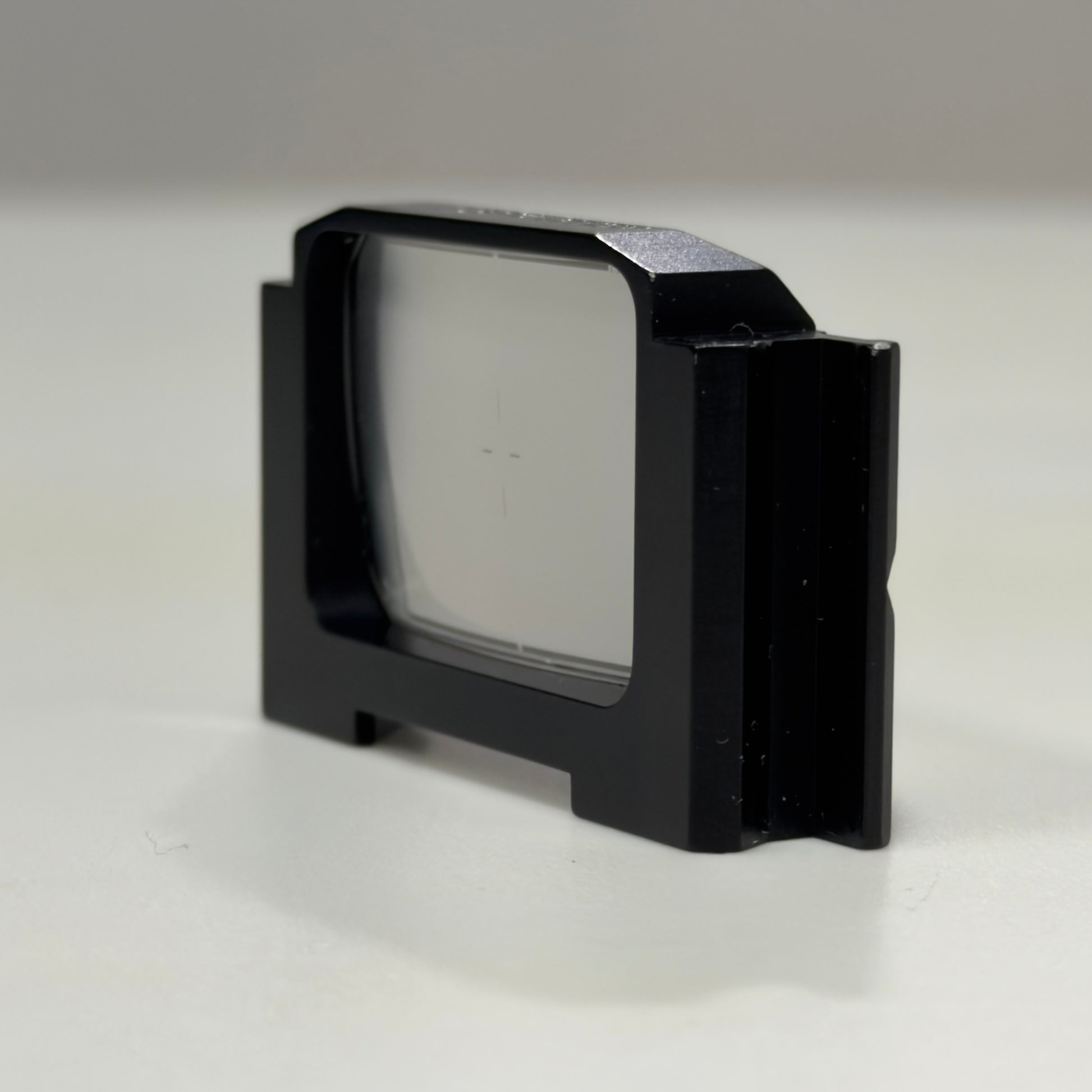

The Moviecam 2.35 Academy Anamorphic Ground Glass is designed for 35mm film cameras, specifically supporting a $2:1$ squeeze anamorphic format. It generally features a standard Academy aperture of $21.3 \times 18.0 \text{ mm}$ for 2x anamorphic, often utilized for widescreen 2.35:1 or 2.39:1 aspect ratios. [1, 2, 3, 4, 5]

Specifications & Characteristics:

Format: 35mm Academy.
Aperture Size: Approx. $21.3 \times 18.0 \text{ mm}$ (common for 2.35:1/2.39:1 2x anamorphic).
Aspect Ratio: 2.35:1 (or 2.39:1) widescreen.
Compatibility: Designed for Moviecam Compact MK2 and similar cameras.

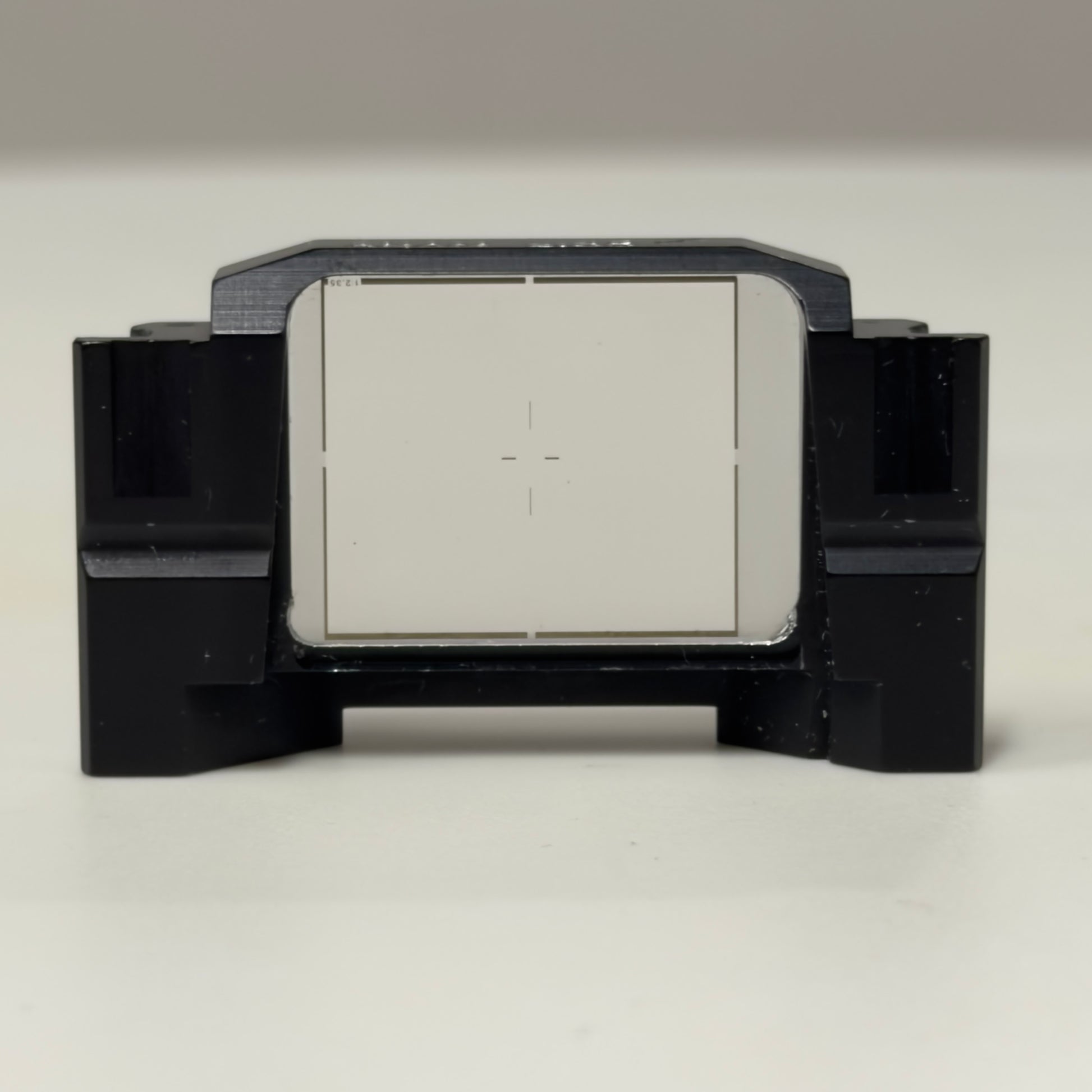

Markings: Includes frame lines for 2.35/2.39 and typically a 2x de-anamorphic viewing area (sometimes with center crosshair).
Interchangeability: The ground glasses are user-interchangeable, designed with high-efficiency coatings for bright viewing, and often used with de-anamorphic optical compensation in the viewfinder. [1, 2, 3, 4, 5]
