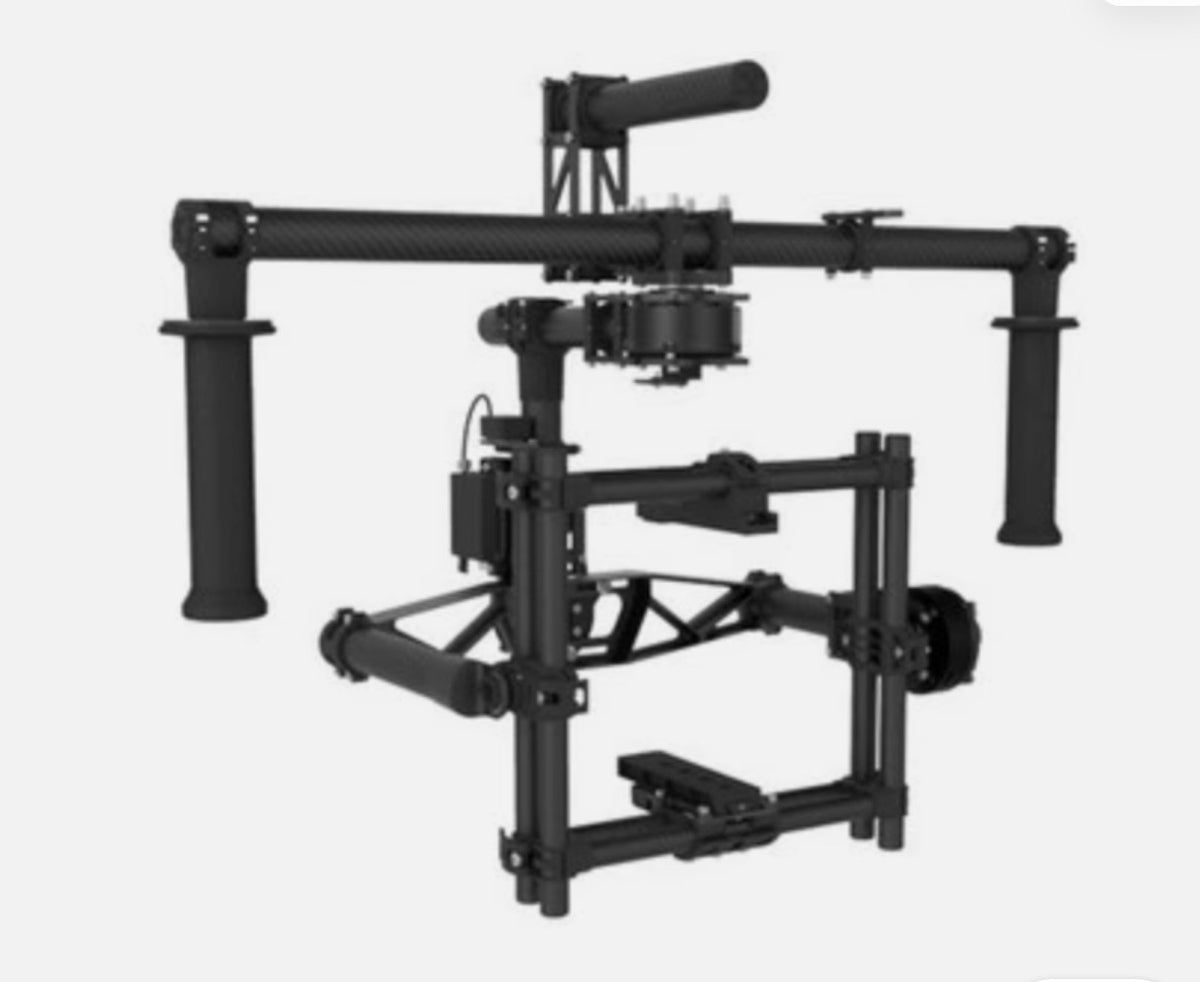

MOVI M10 3-Axis Gimbal
MOVI M10 3-Axis Gimbal
Freefly
Couldn't load pickup availability
The technical specifications for the Freefly MōVI M10 3-Axis Motorized Gimbal Stabilizer are detailed below:
Payload & Weight
| Feature | Specification |
| Maximum Payload | 12 lbs / 5.44 kg |
| Gimbal Weight | 4.8 lbs / 2.2 kg |
| Camera Cage Dimensions | 140 mm (L) × 200 mm (W) × 165 mm (H) |
Movement & Range of Motion
-
Pan Range: $360^\circ$ continuous
-
Tilt Range: $\pm 180^\circ$
-
Roll Range: $\pm 180^\circ$
-
Slew Rates: $0^\circ$ to $150^\circ$ per second
Electronics & Power
-
Operating Voltage: 9 to 18 VDC (3S or 4S LiPo)
-
Battery Type: 14.8V 2.1Ah / 2.6Ah LiPo battery pack
-
Battery Weight: 0.44 lbs / 200 g
-
Connectivity: Bluetooth for config GUI (Windows/Android), radio frequency (DSMX and SBUS RC compatibility)
Operational Features
-
Operating Modes: Majestic Mode (Single Operator), Dual Operator Mode (via remote controller), and Inverted Mode
-
Mounting Options: Handheld top handle/ring, jib/crane, Steadicam/vest mount, or bottom-mounted on aerial platforms (e.g., Freefly ALTA)
