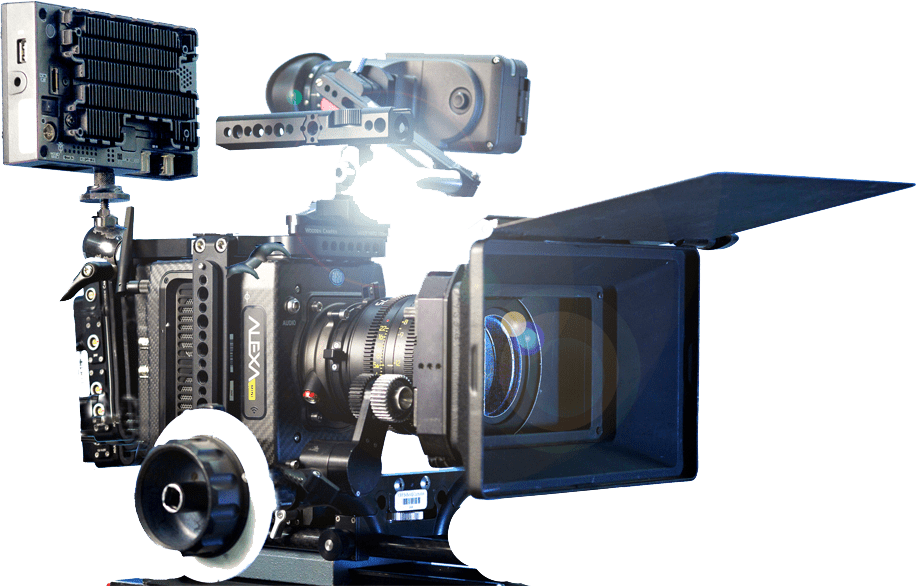

ARRI ALEXA MINI 4:4:4 PACKAGE

ARRI ALEXA MINI 4:4:4 PACKAGE

ARRI

$24,000.00 USD
$38,000.00 USD $24,000.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

The full technical specifications for the ARRI ALEXA Mini with all permanent software licenses unlocked (ARRIRAW, 4:3 Anamorphic, and ARRI Look Library) alongside a complete ARRI Studio Cage setup are detailed below:

Chat now, Add: Mags, Batteries, Mattebox, Tripod, Follow Focus, Filters, Monitors

Sensor & Dynamic Range

Feature Specification
Sensor Type 35mm ARRI ALEV III CMOS (Bayer pattern color filter array)
Active Sensor Dimensions $28.25\text{ mm} \times 18.17\text{ mm}$ (Diagonal: $33.59\text{ mm}$ / Super 35)
Max Sensor Resolution $3424 \times 2202$ (7.5 Megapixel Open Gate)
Photosite Pitch 8.25 $\mu$m
Dynamic Range 14+ stops over entire sensitivity range (EI 160 to 3200)
Base Sensitivity EI 800 (Adjustable from EI 160 to 3200 in 1/3-stop increments)
Shutter Angle / Speed $5.0^\circ$ to $356.0^\circ$ electronic rolling shutter ($1\text{s}$ to $1/8000\text{s}$)

Recording Formats, Resolutions & Licenses

Unlocked Permanent Software Licenses

  1. ARRIRAW License Key: Unlocks MXF-wrapped ARRIRAW recording internally to CFast 2.0 cards.

  2. 4:3 Anamorphic License Key: Unlocks full 4:3 sensor readout modes, 2x anamorphic de-squeeze for viewfinder/SDI outputs, and Open Gate capability.

  3. ARRI Look Library License: Pre-installs 87 color-graded 3D LUT profiles directly in-camera.

Maximum Frame Rates by Recording Mode

Recording Format Resolution Max Frame Rate
ARRIRAW Open Gate 3.4K $3424 \times 2202$ 30 fps
ARRIRAW 16:9 2.8K $2880 \times 1620$ 48 fps
ProRes 4:3 2.8K $2880 \times 2160$ 50 fps
ProRes 2.39:1 2K Anamorphic $2048 \times 858$ 120 fps
ProRes 16:9 2K / HD $2048 \times 1152$ / $1920 \times 1080$ 200 fps
ProRes 3.2K / 4K UHD $3200 \times 1800$ / $3840 \times 2160$ (upsampled) 60 fps

  • Codecs Supported: MXF/ARRIRAW, Apple ProRes 4444 XQ, 4444, 422 HQ, 422, and 422 LT.

  • Recording Media: CFast 2.0 Cards.

In-Camera Features & Construction

  • Built-In ND Filters: Motorized internal neutral density wheel with 2-stop (0.6), 4-stop (1.2), and 6-stop (2.1) filters.

  • Motor Control System: Integrated LBUS controller for direct connection of ARRI cforce mini lens motors without an external motor controller box.

  • Camera Body Materials: Carbon fiber body with titanium PL mount.

  • Dimensions (H × W × L): $5.5\text{ in} \times 4.9\text{ in} \times 7.3\text{ in}$ ($140\text{ mm} \times 125\text{ mm} \times 185\text{ mm}$).

  • Body Weight: ~5 lbs (~2.3 kg).

Inputs, Outputs & Electronics

  • Video Out: 2x HD-SDI 1.5G/3G (supports 6G-SDI for UHD monitoring).

  • Audio In: 1x LEMO 5-pin balanced stereo line input.

  • Power Input: 1x LEMO 8-pin (10.5 to 34V DC). Power draw is 43W base, up to 84W with MVF-1.

  • Accessory Power Output: 1x LEMO 7-pin EXT port (unregulated battery passthrough voltage).

  • Wireless: Integrated Wi-Fi interface for web-browser remote control.

ARRI Studio Cage Support System Specs

A full ARRI Studio Cage setup includes:

  1. ARRI MAP-1 & MAP-2 Plates: Top and bottom adapter plates providing $3/8\text{"-16}$ and $1/4\text{"-20}$ mounting threads.

  2. ARRI MSB-1 Side Brackets: Protective side cage arms with rosette mounts for handgrips and accessory arms.

  3. ARRI RAB-1 Clamp & Rear Bracket: Mounts directly to the back of the body for slide-on V-Mount or Gold-Mount battery plates.

  4. ARRI CBP-1 Studio Compact Bridge Plate: Integrated $19\text{mm}$ (or $15\text{mm}$ studio) rod support with a quick-release mechanism for ARRI-standard dovetail plates.

  5. ARRI CCH-2 Center Camera Handle: Top handle with mounting threads and quick-lock integration to the top plate.
