IKEGAMI ITC-350 BROADCAST TUBE CAMERA PKG
IKEGAMI ITC-350 BROADCAST TUBE CAMERA PKG
IKEGAMI ITC-350 BROADCAST TUBE CAMERA PKG

IKEGAMI ITC-350 BROADCAST TUBE CAMERA PKG

Regular price
$20,000.00
Sale price
$20,000.00
Shipping calculated at checkout.

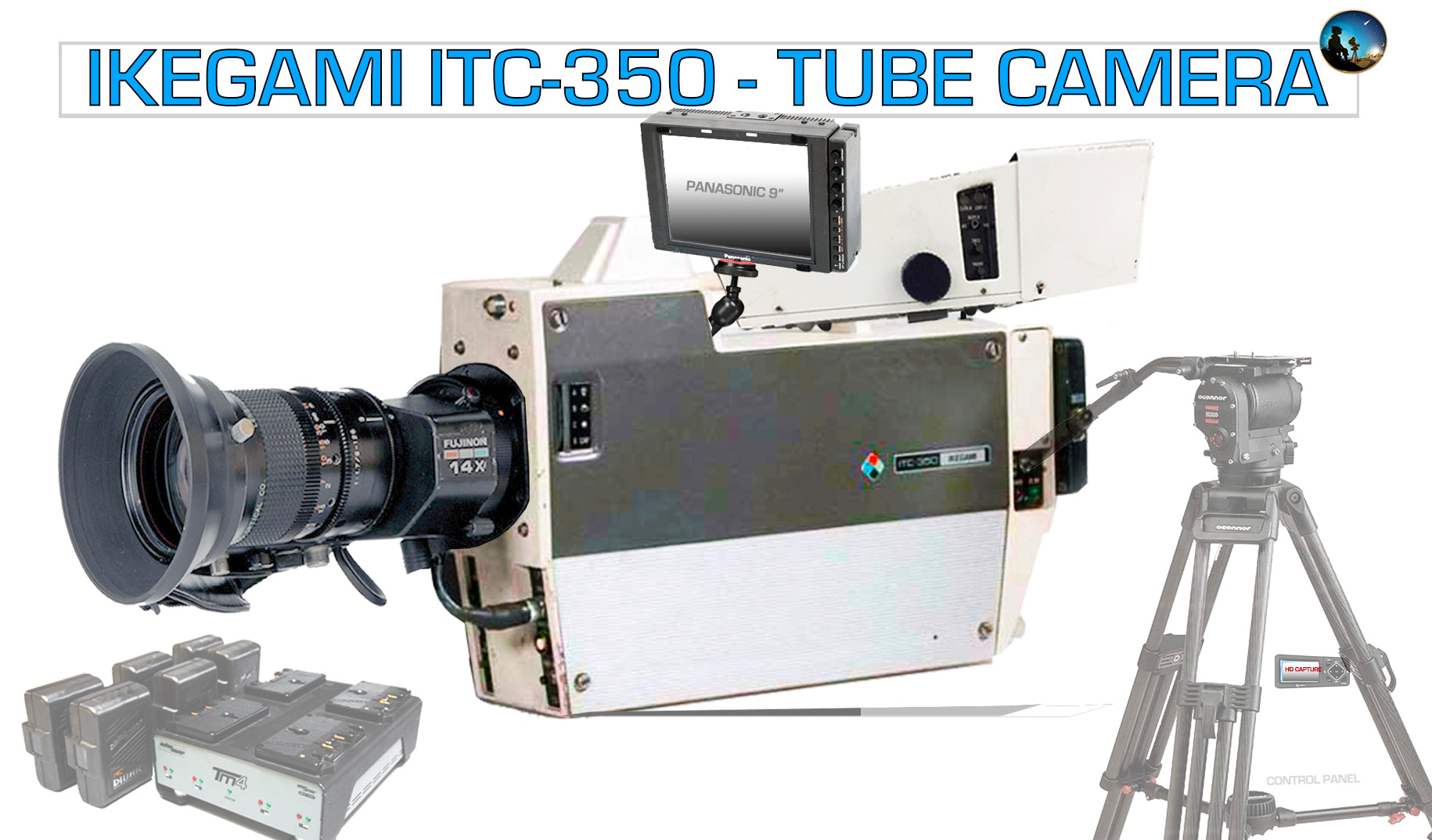

IKEGAMI ITC-350 VINTAGE ANALOG / DIGITAL - BROADCAST SATICON (3 TUBE)

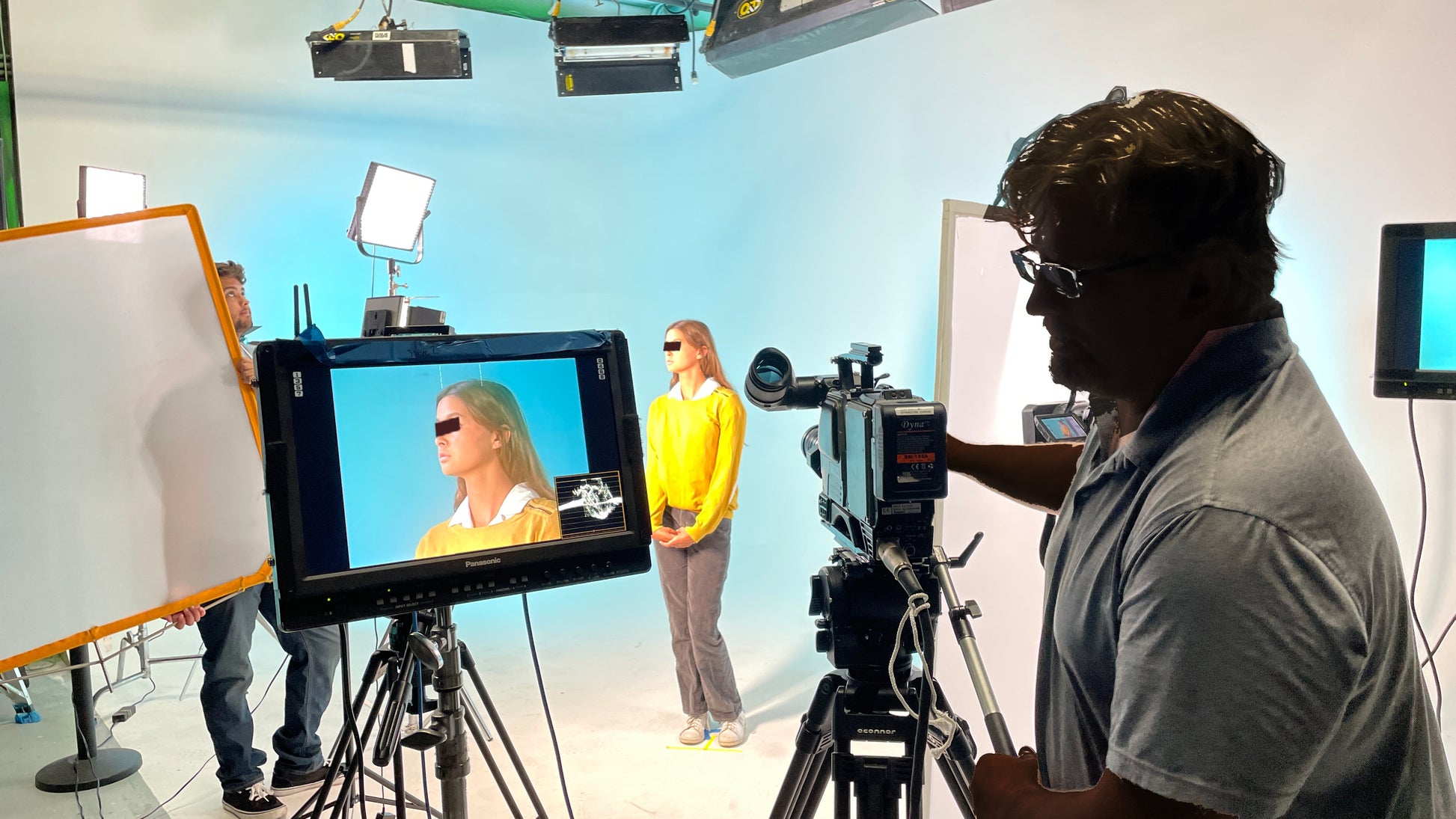

OSC'z CUSTOM ENGINEERED - LATE 70's early 80's era TELEVISION EFP CAMERA w/ computer control (see test shots) no tape needed!!!

    • ENGINEERED CUSTOM TUNING, POST FLOW
    • IKEGAMI ITC-350 (3 TUBE CAMERA)
    • FUJINON 9-153 T1.7 ZOOM w/ SERVO
    • IKEGAMI BM VIDEO ASSIST 5" REC
    • RGB INTERFACE INTEGRATION
    •  SDI, D-TAP, ACC PWR CUSTOM
  • SANDISK 128GB M.SD XTM PLS UHS-I SDXC
  • SANDISK SD/ MICRO READER
  • IKEGAMI ITC-350 CONTROL BOX
  • IKEGAMI BASEPLATE
  • ANTON BAUER QUAD CHARGER
  • ANTON BAUER HC DIONIC BATTERIES
  • FLUID HEAD & TRIPOD



RENTALS@OLDSCHOOLCAMERAS.COM (LONG-TERM DISCOUNT)

  • IKEGAMI CAMERA FULL PKG = 2k/ day,      4k/wk,      10k/monthly



RENTALS are available separately from Old School's RENTAL DEPT. Email Directly, rentals@oldschoolcameras.com for more info and Package deals!



OSC's Vintage Broadcast Division performing unparalleled tuning and innovation, science and technologies, Engineered for Modern use by Old School Camera's Engineering Department w/ Anton Bauer Battery sustained power (regulated block available, Wireless video ready for added ease of use for the director and dp. Video Capture w/ integrated HD and avail. Gimbal, Steadicam, Gear Head Ready!



OSC's alignment, image tuning expertise, post flow, dynamic in-camera adjustments for each use customized to Cinematographer's around the world!!!



DIT - ENGINEER RATE $ASK (On-site Camera Engineer 1970's 80's Television Vintage Specialist)

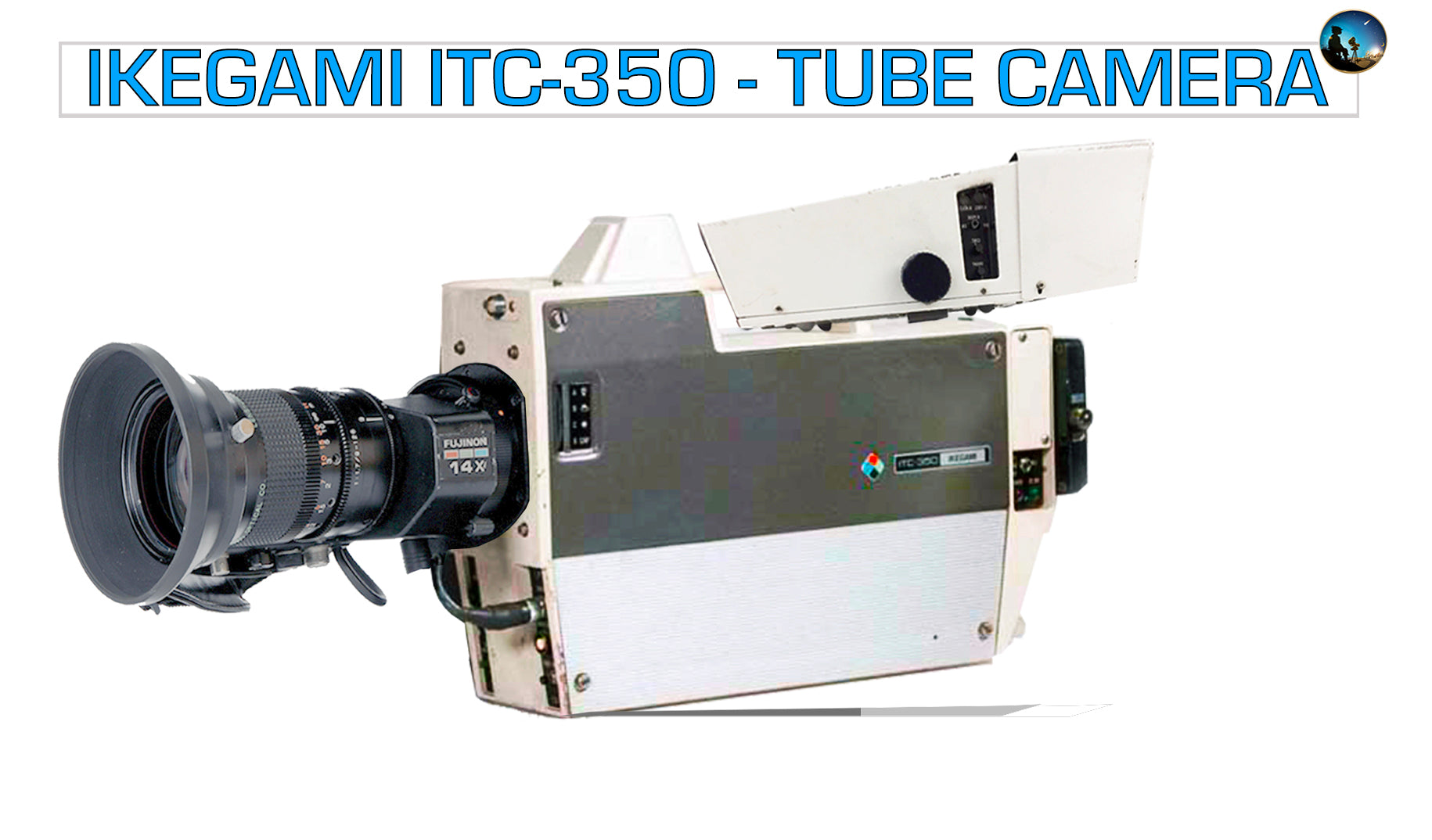

The Ikegami ITC 350 camera is studio tube color. It also has a resolution of 500 TV lines with a 52dB S / N ratio. And, connected to the CCU, however, it can reach distances of 100 meters with the multicore cable. This model is also equipped with an automatic white balance button for easier and faster use. The camera head is well balanced on the shoulder and there is no feeling of fatigue even if the cameraman has been at work for a long time. It is equipped with a stand by function for energy saving. Power is supplied to the camera head using the AC power supply (ACP-35) or via the CCU. The ACP-35 supplies constant power to the camera using a remote sensing system.



Saticon pick-up tubes for lowest image lag.

High-speed (f/1/4) prism beamsplitter low shading, exc resolution, colorimetry, high sensitivity (f/4.0 @ 2000 lux). ITC-350 incorporates a color temperature filter wheel. 3200ºk, 5600ºk, + 25% ND, Cap. White Balance w/ 8-bit memory. +9dB/+18dB video gain switch increments of 8 folds, enabling shooting under lighting as low as 40 lux (w/ f/1.6 lens). High Performance FET built into the coil for signal-to-noise ratio of 57dB. Horizontal and vertical detail corrector A2H built-in comb filtering. Deflection distortion corrector and dynamic focus enabled. DBS (Dynamic Beam Stretch) dpectral high-lights, minimized comet tailing. Zebra, White Balance, RS-189A split field color bar generator.

Mic input, DC 12V in, Genlock in, Video Out, VTR/ REMOTE, Intercom, Mic On/Off switch.



ITC-750A - 1980’s Saticon II ver. was used on modern HBO Television Show, "Winning Time." Classic footage represented 1980's, 1970's.



ADD+ ON(s)

POST PRODUCTION

CONTACT: studios@cinematicartsandsound.com



POST PIPELINE VFX INTEGRATION + ASK

ANALOG TAPE TRANSFTER + ASK

ANALOG FX PROCESSING + ASK

VFX & LIVE ACTION ON-SITE + ASK



VIDEO VTR: PLAYBACK - RENTAL:

SMALLHD 702 MONITOR + 100

SMALLHD FOCUS BOLT7 RX + 100

SMALLHD 703 MONITOR & RX + 300

TERADEK WIRELESS TX / RX + 100

TERADEK RT MOTION FIZ + 250

VIDEO CARTS & ON-SITE KIT + CALL



LENS CONTROL: RENTAL:

ENG LENS ZOOM CONTROL + 50

ENG LENS FOCUS SYSTEM + 125



POWER & MISC RENTALS:

NK BLOCK BATTERY w/ CHRG + 100

IKEGAMI CCA 730A CCU + 100

OCONNOR TRIPOD / FLUID HEAD + 150

LENSES, TRIPODS, WIRELESS VIDEO, CONV

FILTERS, SPECIAL EFFECTS



PERFORMANCE

A highly efficient beam splitter produces excellent light transfer characteristics. At only 60 lux of illumination, full video level is realized.

Sensitivity of 2000 lux at f/4.0 with a signal to noise ratio of 52 dB and the horizontal resolution of 500 lines testifies to the systems excellence.

With the adjustable horizontal and vertical image enhancement, superior picture sharpness is assured.

Bias lighting in the optical assembly all but eliminates unwanted image persistence.

Proper black shading and black balance is maintained by very stable and reliable circuits.

Adjustable gamma circuits assure video matching of multiple camera productions.

Gen lock feature is included with SC and H-phase adjustments for precise systems timing.

The ITC-350 uses only 15W, that means battery power to spare when you're operating in the field.



AUTOMATIC FEATURES:
The auto-white balance button is on the camera head for quick and easy use. The memory for white balance will last for two to three days after power has been turned off.
A DBS (Dynamic Beam Stretcher) prevents comet tailing. The auto-iris keeps the video level stable by varying the lens opening as illumination changes.
The auto-iris closure circuit protects camera tubes after the camera is turned off.



OPERATION CONVENIENCES :
+6dB/+12dB video gain switching provides high quality video, even under low light conditions with as little as 60 lux illumination.
A built-in Color Bar Generator is provided for convenience in adjusting color monitors, and testing the encoder.
Check the switcher, or VTR output in the camera viewfinder by flipping the Video Return Switch.
VTR remote STOP/START is provided on the camera head.
A filter wheel, allows the camera to be easily rebalanced, with the changing of illumination sources.
A built-in zebra pattern is displayed on the viewfinder to facilitate adjusting the video level. R/G/B/-G change over switching aids registration adjustments.

A power-saving standby function.
Camera head is well balanced on the shoulder, and there is no feeling of fatigue even if the cameraman is at work for long time.
The 5 inch viewfinder for studio use is equipped with a tilting mechanism mount or the 1.5 inch viewfinder for portable use is available.
Battery, tally, white balance, VTR ON, and video level indicators are all superimposed on the camera viewinfer.



POWER SUPPLY :
Power is supplied to the camera head by using the AC Power Box (ACP-35), or through the. CCU. The ACP-35 supplies constant power to the camera by using a remote sensing system.
The camera head can be operated on DC power from a detachable battery pack.
